2193 Amanda 3 Bed 2 Bath Industrial House Plan – 2,193 Sq Ft, 1 Story

  • plan-area 2193 sq/ft
  • plan-area 3 Bed
  • plan-area 2 Bath
  • plan-area 1

House Construction Drawings

$1,268.13

Instant download after checkout

Add to Wishlist
Add to Wishlist

One level, and every room close at hand. The 2193 Amanda is an one-story industrial home with 3 bedrooms and 2 bathrooms in 2,193 sq ft. A side-entry garage keeps the front of the home clean and welcoming. A metal exterior gives it classic curb appeal. Your 9-sheet drawing set downloads right after checkout, so you can start planning today.

Width
98'- 10 1/2"
Depth
49'-9"
Height
24'- 4 3/8"

What's included

9 drawing sheets, PDF

  • C1Revision Index, General Notes

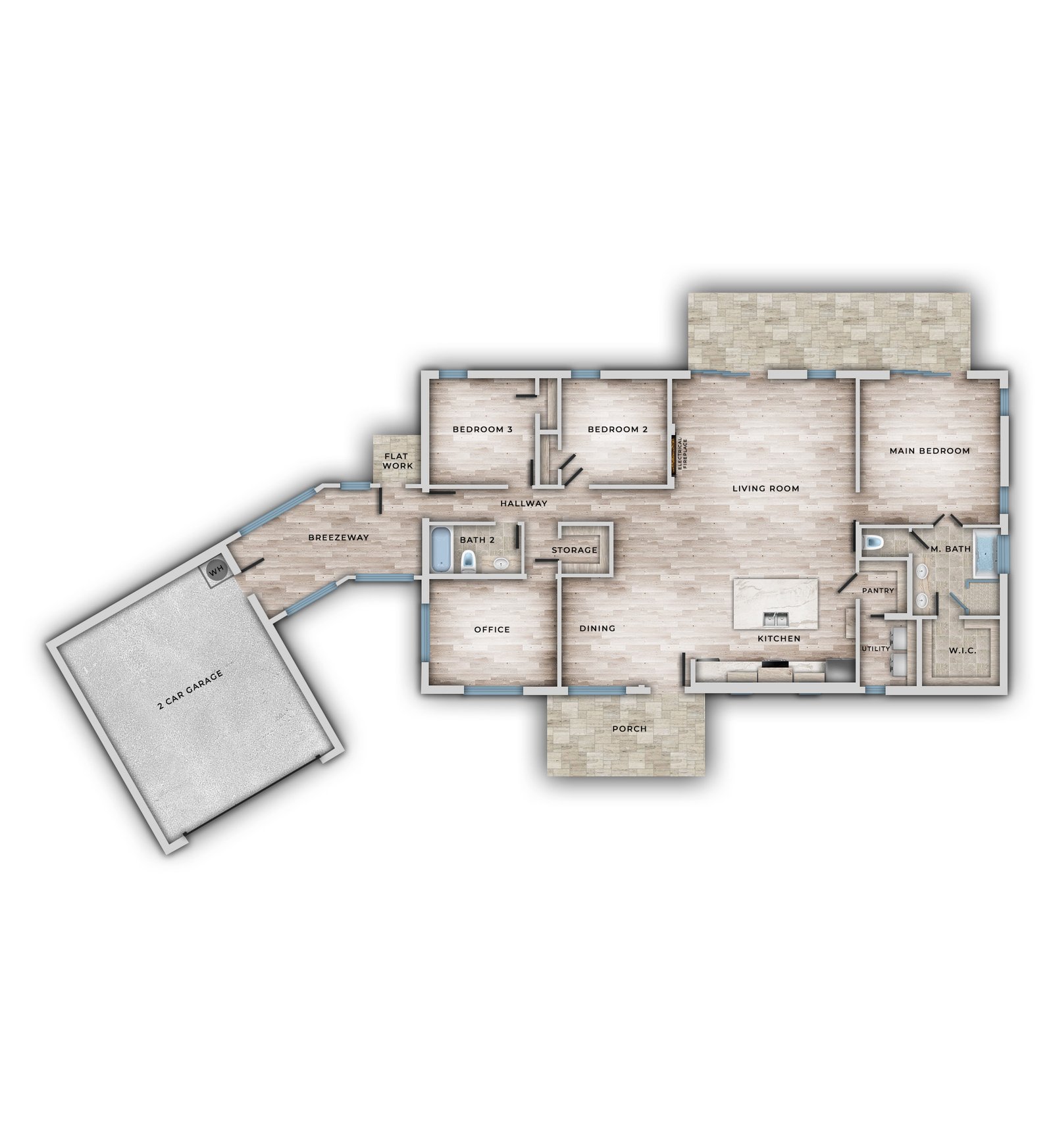

  • A1First Floor Plan

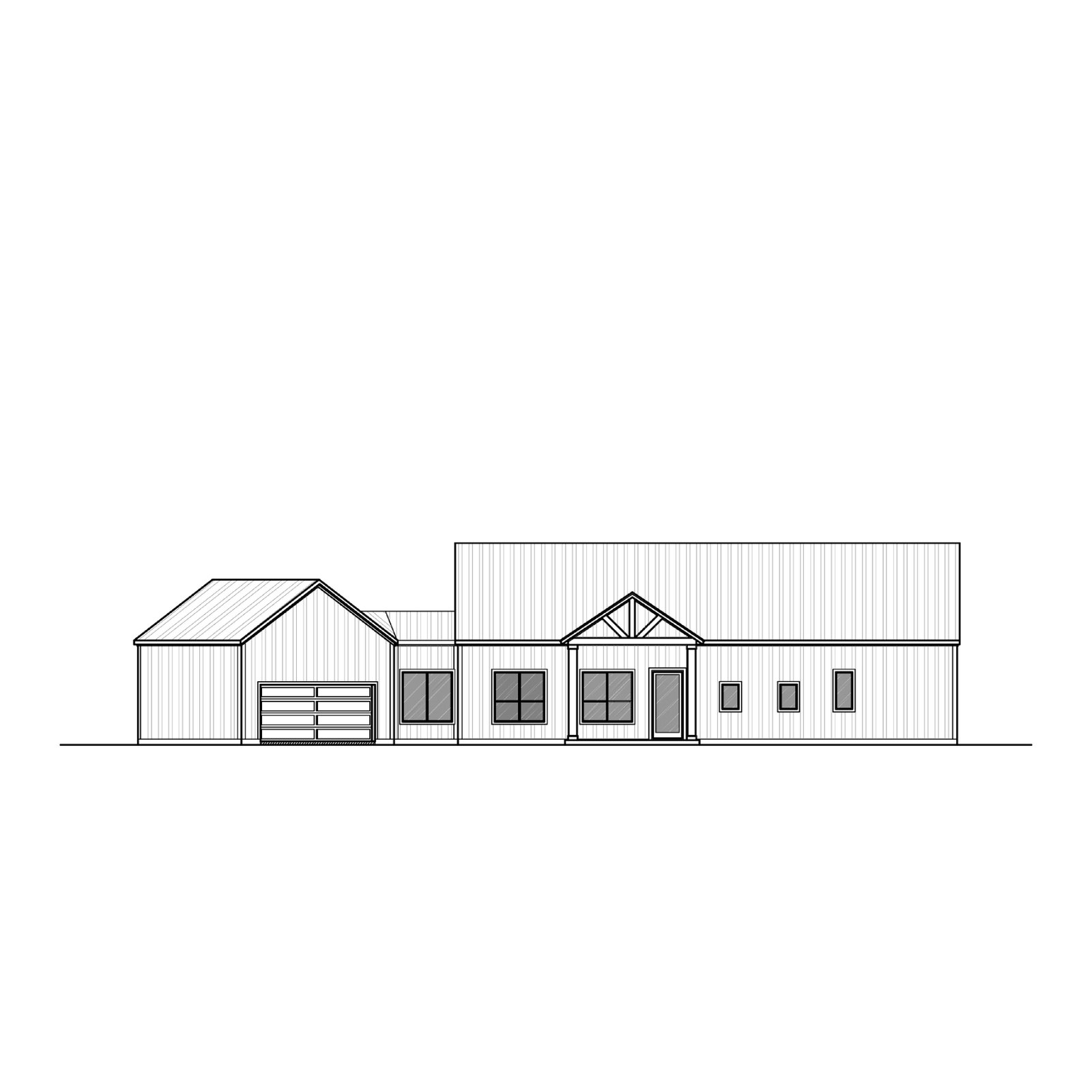

  • A2Front & Rear Elevations
  • A3Right & Left Elevations
  • A4Roof Plan
  • A5Interior Elevations
  • D1Details
  • E1First Floor Electrical Plan
  • P1First Floor Plumbing Plan

All sales are final. Plans are sold as drawn; changes to plans are not available at this time.

Specifications

Living area2,193 sq ft
Total area3,093 sq ft
Bedrooms3
Bathrooms2
Stories1
Width98'- 10 1/2"
Depth49'-9"
Height24'- 4 3/8"
Garage entryJ Swing
StyleIndustrial
Exterior wall framing2x4
Exterior finishMetal
Main roof pitch8:12
Ceiling height9'-0"
Living area ceiling height11'-0"
