2134 Verona 3 Bed 2 Bath Ranch House Plan – 2,134 Sq Ft, 1 Story

  • plan-area 2134 sq/ft
  • plan-area 3 Bed
  • plan-area 2 Bath
  • plan-area 1

House Construction Drawings

$1,298.88

Instant download after checkout

Add to Wishlist
Add to Wishlist

Life flows better on one level. The 2134 Verona is a one-story ranch home with 3 bedrooms and 2 bathrooms in 2,134 sq ft. Ten-foot ceilings give the rooms an open, airy feel. A side-entry garage keeps the front of the home clean and welcoming. The 8-sheet drawing set is ready to download as soon as you check out.

Width
67'-5"
Depth
54'- 1/2"
Height
27'-10 1/2"

What's included

8 drawing sheets, PDF

  • C1Revision Index, General Notes

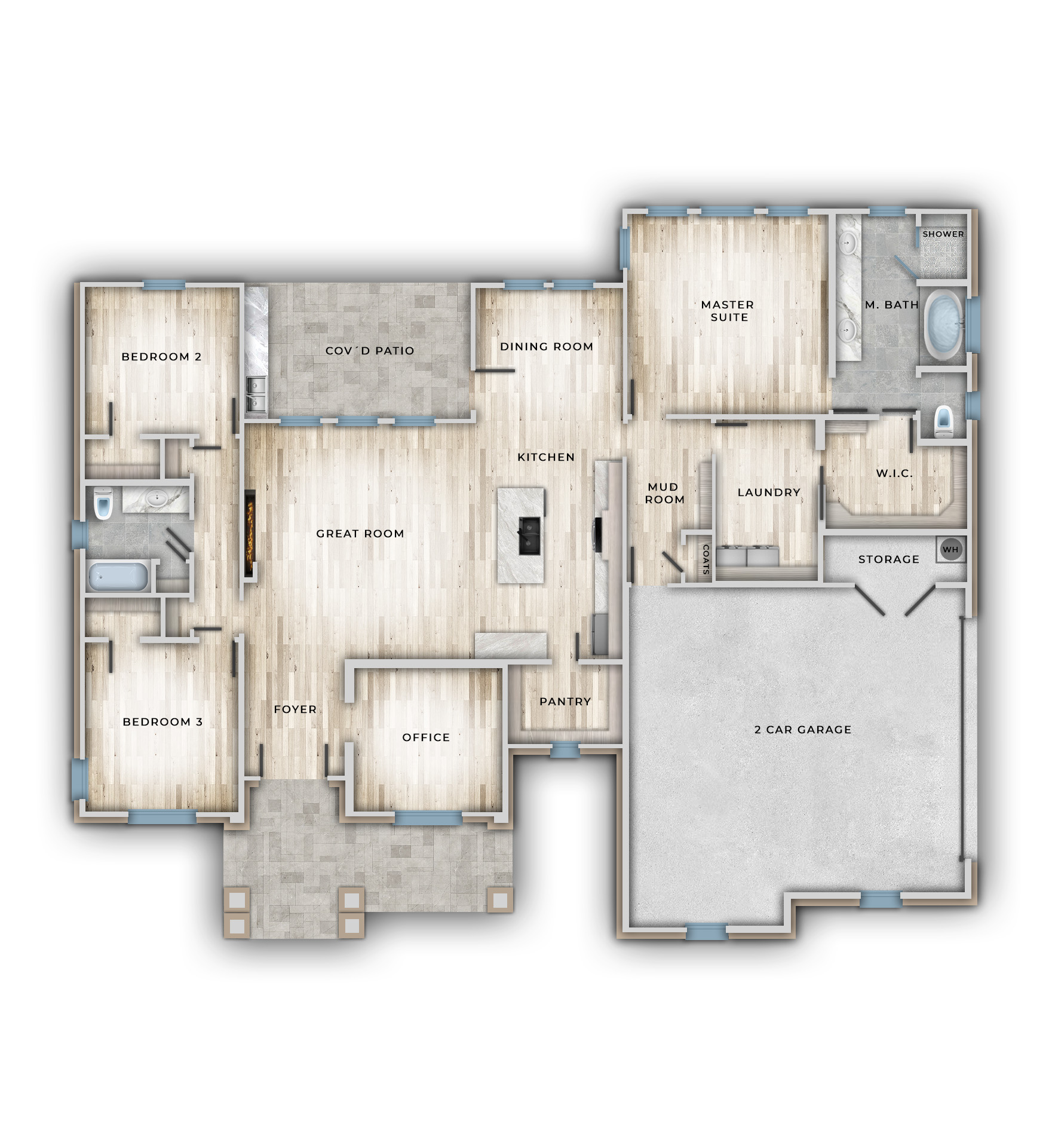

  • A1First Floor Plan

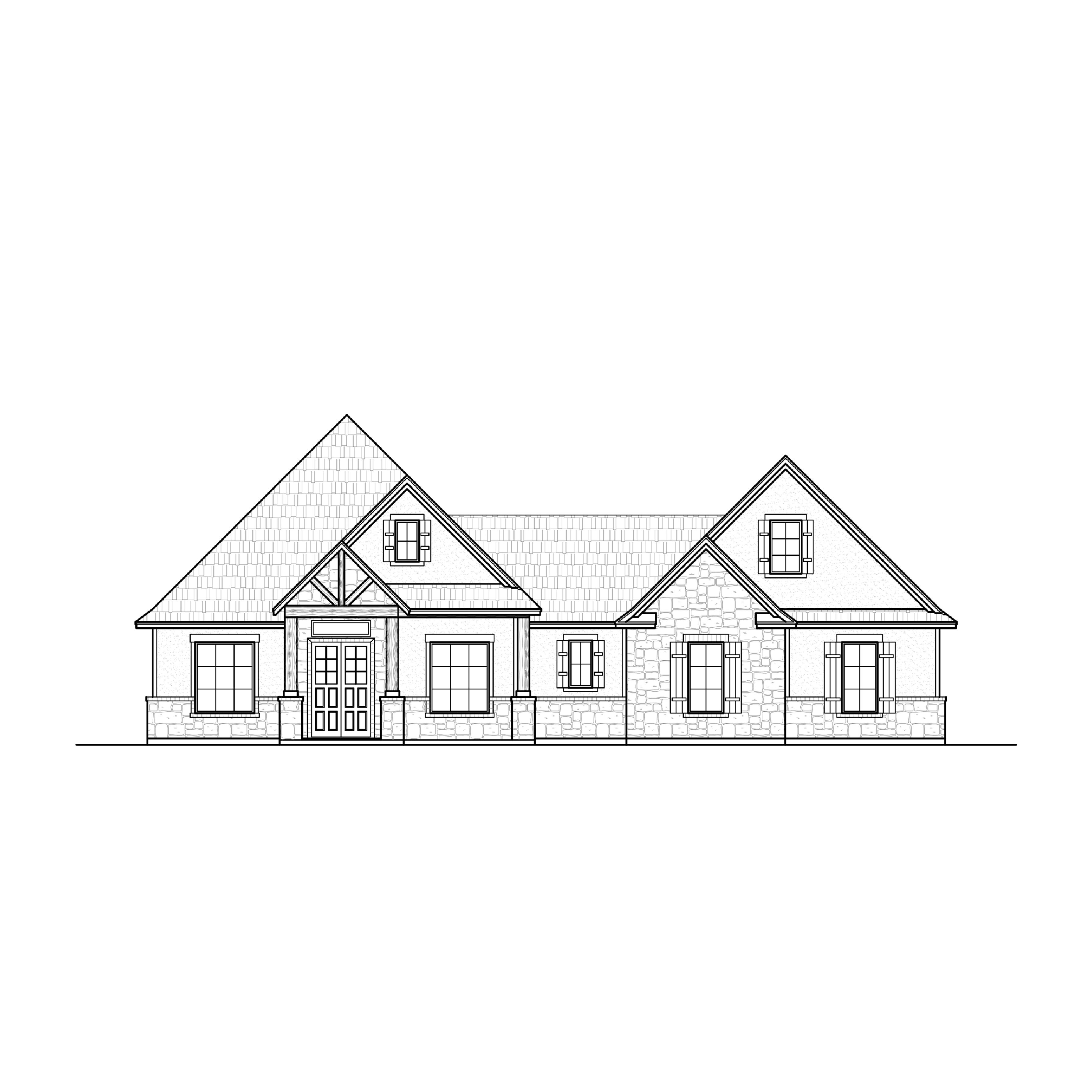

  • A2Front & Rear Elevations
  • A3Right & Left Elevations
  • A4Roof Plan
  • D1Details
  • E1First Floor Electrical Plan
  • P1Plumbing Plan

All sales are final. Plans are sold as drawn; changes to plans are not available at this time.

Specifications

Living area2,134 sq ft
Total area3,168 sq ft
Bedrooms3
Bathrooms2
Stories1
Width67'-5"
Depth54'- 1/2"
Height27'-10 1/2"
Garage entrySide
StyleRanch
Exterior wall framing2x4
Exterior finishStucco & Stone
Main roof pitch12:12
Ceiling height10'-0"
Living area ceiling height13'-0"
