2110 Barcelona 4 Bed 3.1 Bath French Country House Plan – 3,389 Sq Ft, 2 Story

  • plan-area 3389 sq/ft
  • plan-area 4 Bed
  • plan-area 3.1 Bath
  • plan-area 2

House Construction Drawings

$1,725.69

Instant download after checkout

Add to Wishlist
Add to Wishlist
Width
40'-0"
Depth
70'-0"
Height
32'- 2 1/4"

What's included

9 drawing sheets, PDF

  • A1Revision Index, General Notes

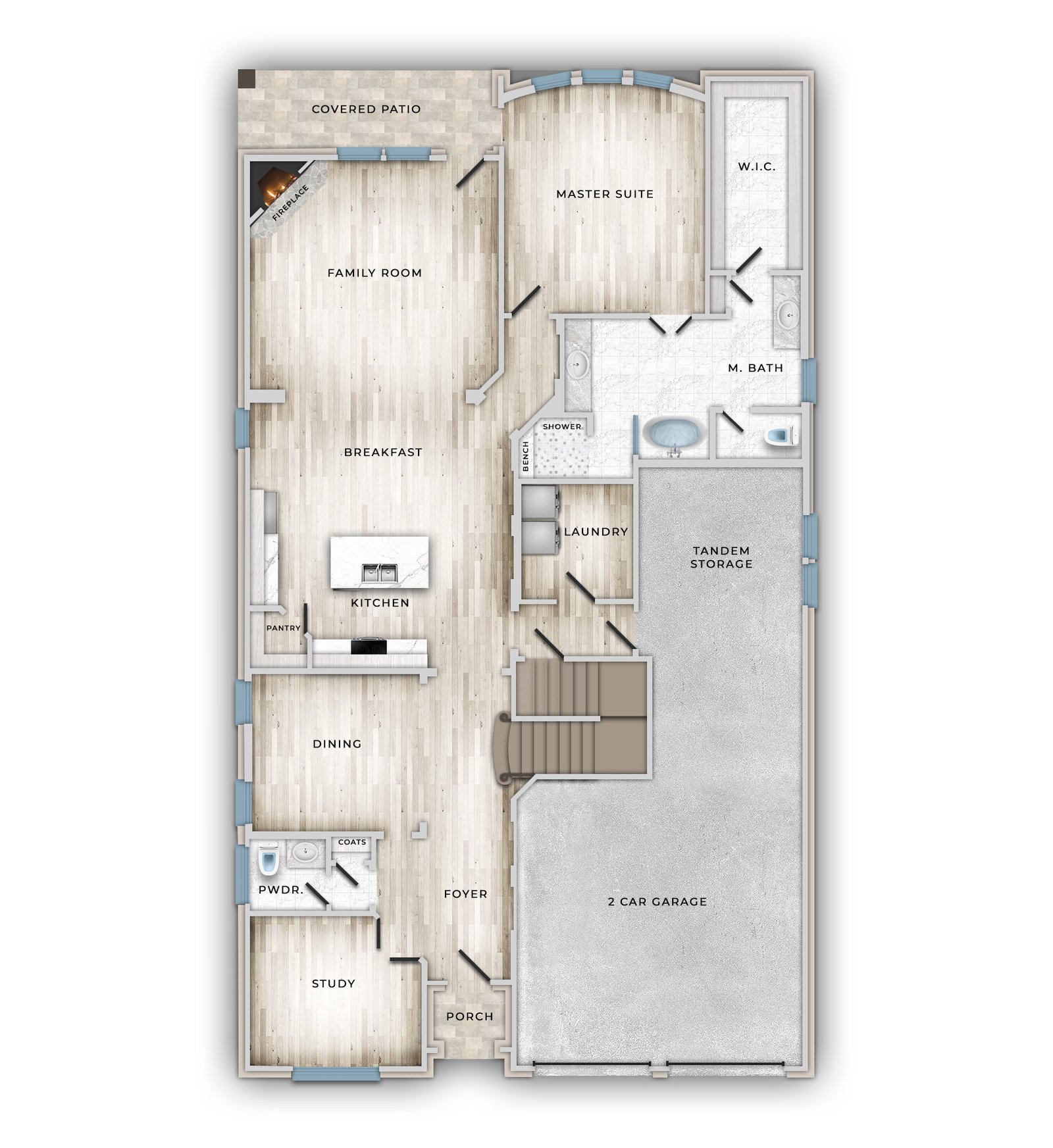

  • A2First Floor Plan

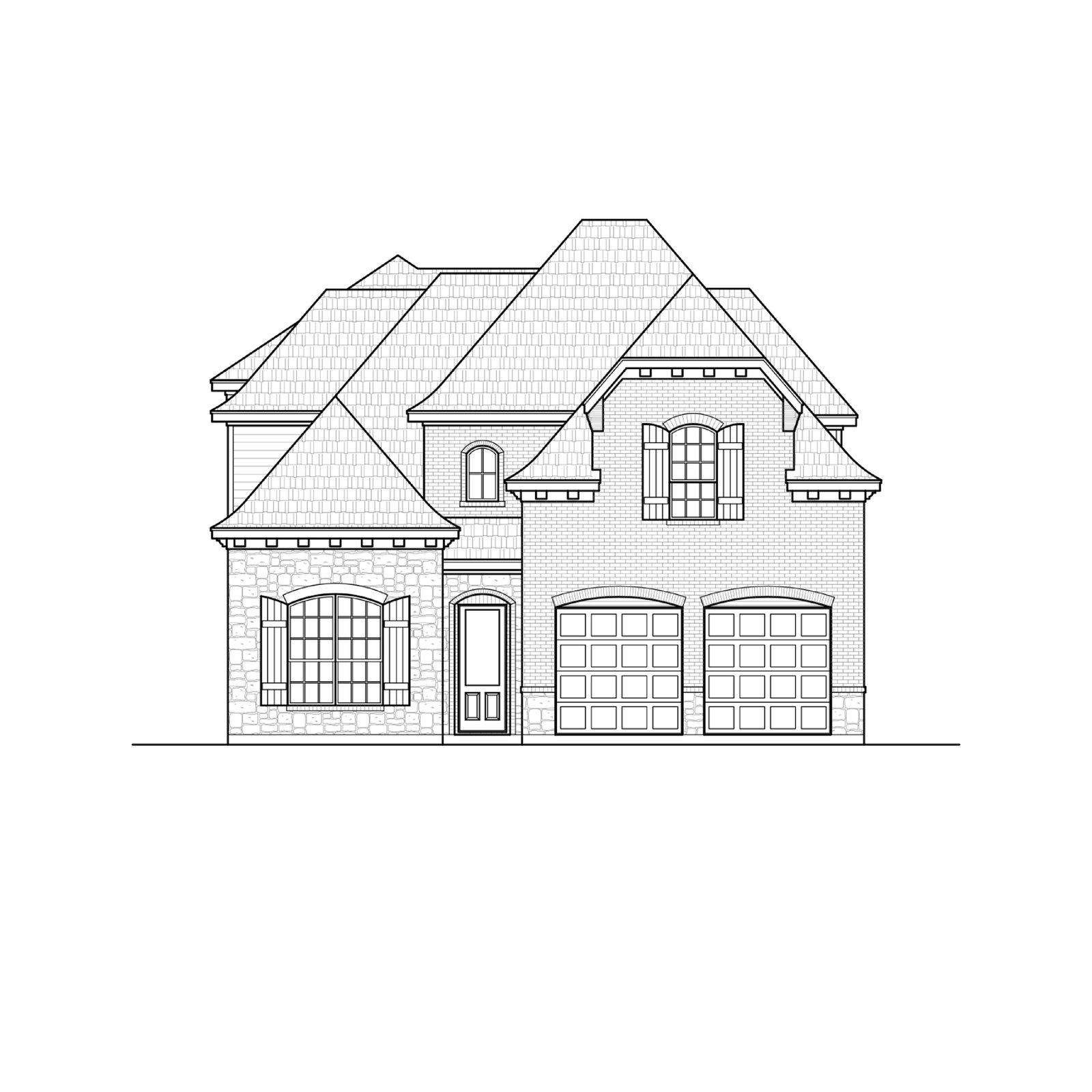

  • A3Front & Rear Elevations
  • A4Right & Left Elevations
  • A5Roof Plan
  • D1Typical Details
  • I1Interior Details
  • E1Electrical Plan
  • P1Plumbing Plan

All sales are final. Plans are sold as drawn; changes to plans are not available at this time.

Specifications

Living area3,389 sq ft
Total area4,209 sq ft
Bedrooms4
Bathrooms3.1
Stories2
Width40'-0"
Depth70'-0"
Height32'- 2 1/4"
Garage entryFront
StyleFrench Country
Exterior wall framing2x4
Exterior finishBrick & Stone Venner, Siding
Main roof pitch8:12
Secondary roof pitch14:12
Ceiling height10'-1"
Living area ceiling height11'-10"
