1950 Ester 3 Bed 2 Bath French Country House Plan – 1,528 Sq Ft, 1 Story

  • plan-area 1528 sq/ft
  • plan-area 3 Bed
  • plan-area 2 Bath
  • plan-area 1

House Construction Drawings

$799.50

Instant download after checkout

Add to Wishlist
Add to Wishlist
Width
39'-11"
Depth
50'-4 1/2"
Height
25'-9"

What's included

8 drawing sheets, PDF

  • C1Revision Index, General Notes

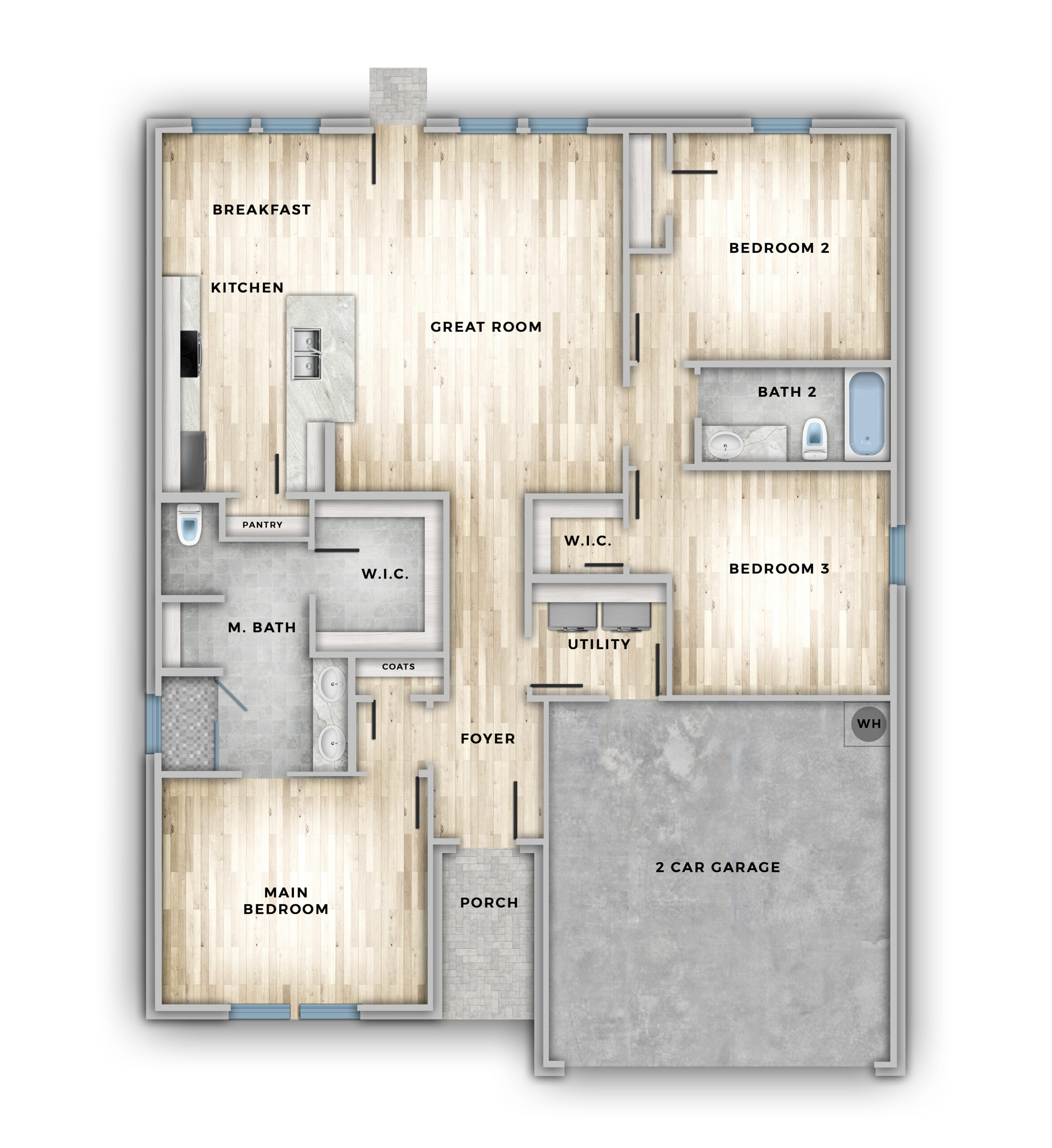

  • A1First Floor Plan
  • A2Front & Rear Elevations
  • A3Right & Left Elevations
  • A4Roof Plan
  • D1Details
  • E1First Floor Electrical Plan
  • P1First Floor Plumbing Plan

All sales are final. Plans are sold as drawn; changes to plans are not available at this time.

Specifications

Living area1,528 sq ft
Total area1,950 sq ft
Bedrooms3
Bathrooms2
Stories1
Width39'-11"
Depth50'-4 1/2"
Height25'-9"
Garage entryFront
StyleFrench Country
Exterior wall framing2x4
Exterior finishBrick & Stone Veneer
Main roof pitch10:12
Secondary roof pitch8:12
Ceiling height9'-0"
Living area ceiling height10'-0"
