1939 Blair 3 Bed 2.1 Bath Mid Century Modern House Plan – 1,961 Sq Ft, 1 Story

  • plan-area 1961 sq/ft
  • plan-area 3 Bed
  • plan-area 2.1 Bath
  • plan-area 1

House Construction Drawings

$1,098.80

Instant download after checkout

Add to Wishlist
Add to Wishlist
Width
51'-2"
Depth
75'-8 1/2"
Height
17'-0"

What's included

12 drawing sheets, PDF

  • C1Revision Index, General Notes

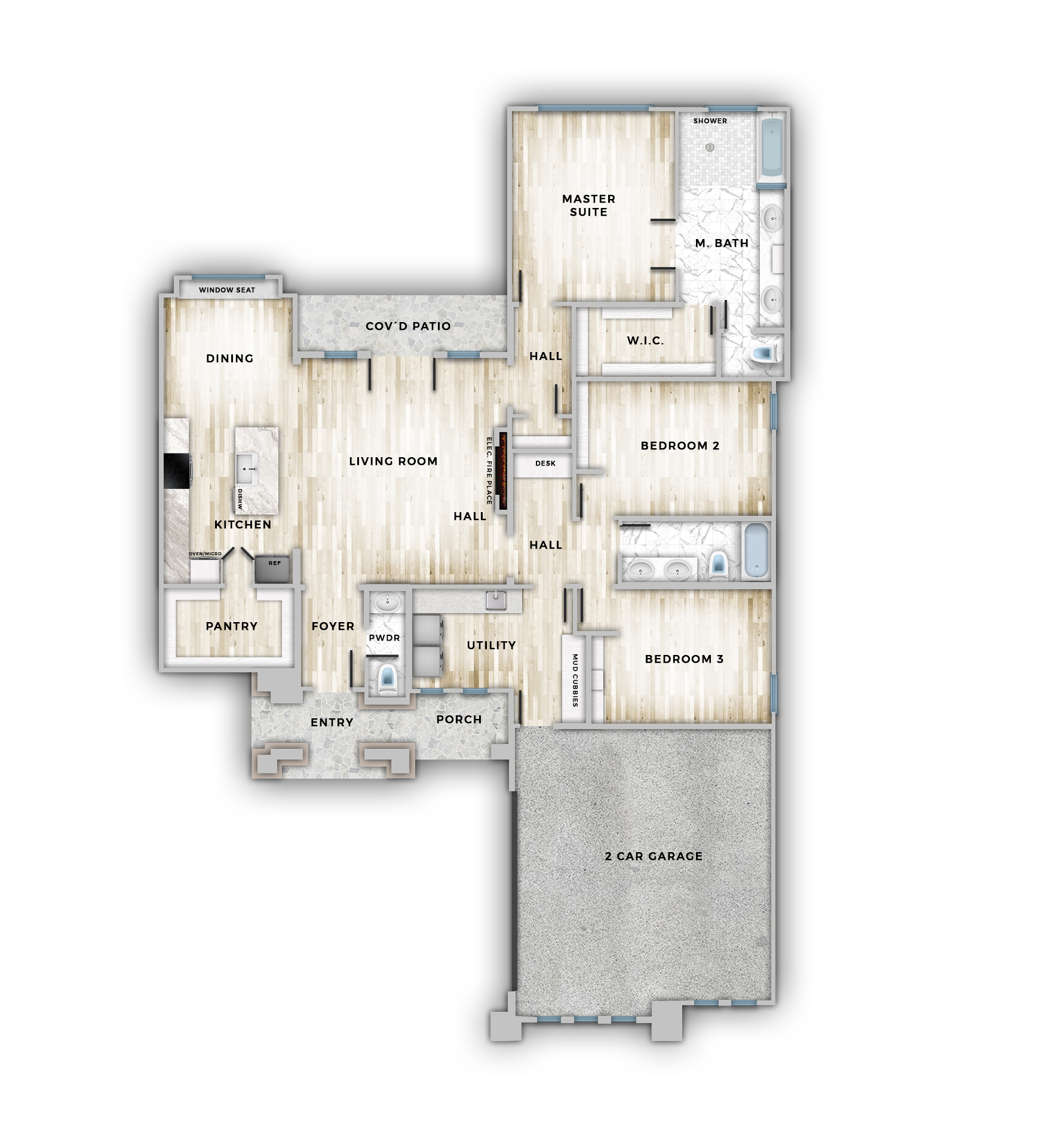

  • A1First Floor Plan
  • A2Front & Rear Elevations
  • A3Right & Left Elevations
  • A4Sections
  • A5Roof Plan
  • E1First Floor Electrical Plan
  • P1First Floor Plumbing Plan
  • D1Additional Details
  • D2Additional Details
  • D3Additional Details
  • D4Additional Details

All sales are final. Plans are sold as drawn; changes to plans are not available at this time.

Specifications

Living area1,961 sq ft
Total area2,680 sq ft
Bedrooms3
Bathrooms2.1
Stories1
Width51'-2"
Depth75'-8 1/2"
Height17'-0"
Garage entryJ Swing
StyleMid Century Modern
Exterior wall framing2x4
Exterior finishSiding, Brick Veneer & Stucco
Main roof pitch5:12
Ceiling height10'-0"
Living area ceiling height12'-0"
