4364 Franklin 4 Bed 4.1 Bath French Country House Plan – 4,364 Sq Ft, 2 Story

  • plan-area 4364 sq/ft
  • plan-area 4 Bed
  • plan-area 4.1 Bath
  • plan-area 2

House Construction Drawings

$2,552.25

Instant download after checkout

Add to Wishlist
Add to Wishlist
Width
103'-5"
Depth
92'-10"
Height
31'-10"

What's included

10 drawing sheets, PDF

  • C1Revision Index, General Notes
  • A1-1First Floor Plan

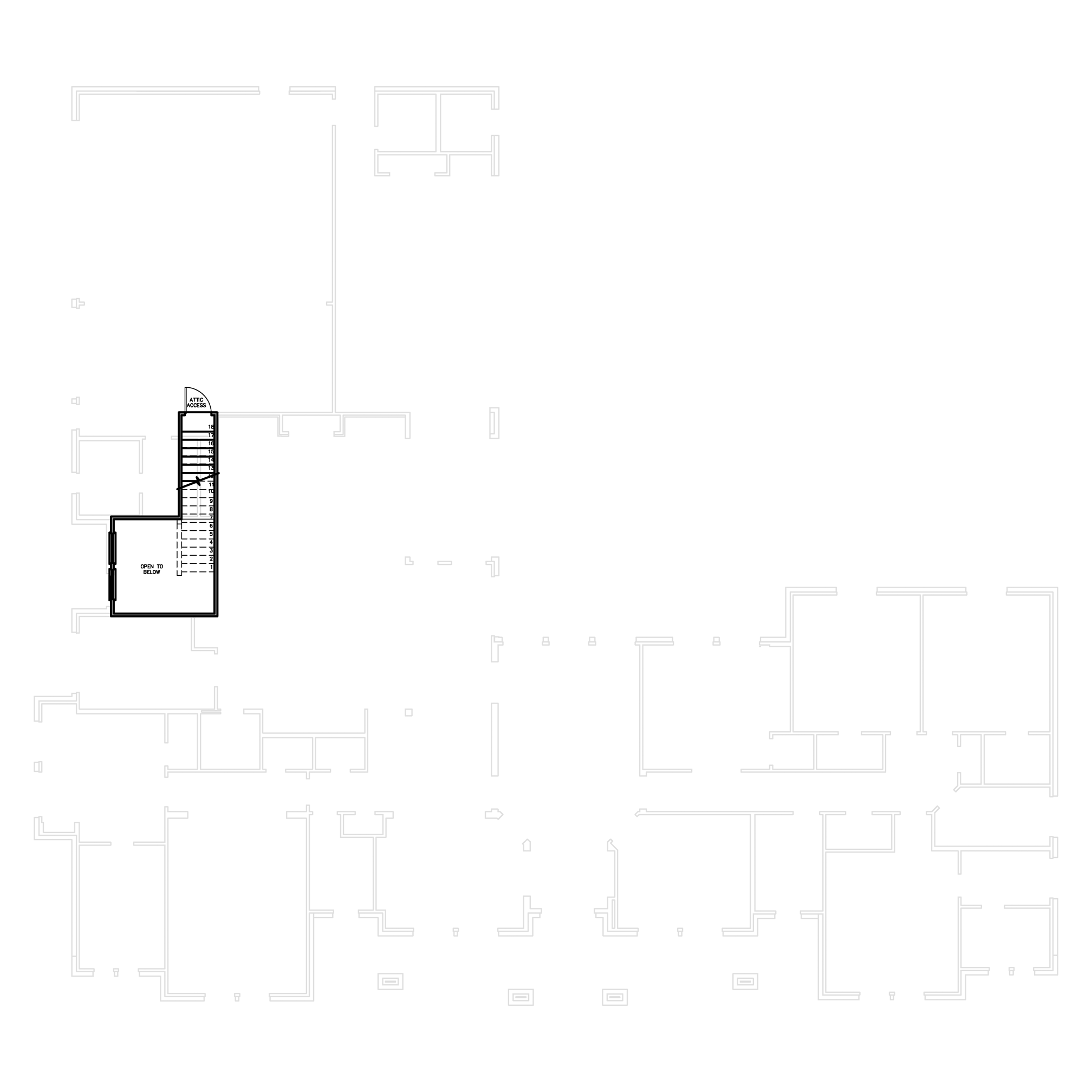

  • A1-2Second Floor Plan
  • A2Front & Rear Elevations
  • A3Right & Left Elevations
  • A4Roof Plan
  • D1Details
  • E1First Floor Electrical Plan
  • E2Second Floor Electrical Plan
  • P1First Floor Plumbing Plan

All sales are final. Plans are sold as drawn; changes to plans are not available at this time.

Specifications

Living area4,364 sq ft
Total area6,225 sq ft
Bedrooms4
Bathrooms4.1
Stories2
Width103'-5"
Depth92'-10"
Height31'-10"
Garage entryFront
StyleFrench Country
Exterior wall framing2x4
Exterior finishBrick & Stone Veneer
Main roof pitch12:12
Secondary roof pitch6:12
Ceiling height10'-0"
Living area ceiling height12'-0"
