2203 Chantal
-
2203
sq/ft
-
4 Bed
-
2.5 Bath
-
1
House Construction Drawings
$1,277.97
Key Features
- Bedrooms: 4
- Baths: 2.5
- Garage Swing: Side Entry
- Stories: 1
Area
- House Area: 2203
- Total Area: 3117
Dimension
- Width: 58'-9 1/2"
- Depth: 66'-0"
- Height: 25'-0"
Exterior Wall
- Framing: 2x4
- Wall Finish: Siding, Brick & Stone Veneer
Roof
- Primary pitch: 8:12
House Interior
- Ceiling Height: 10'-0"
Description
Your Purchase includes an Architectural set in PDF format with the following contents:
C1- Revision Index, General Notes

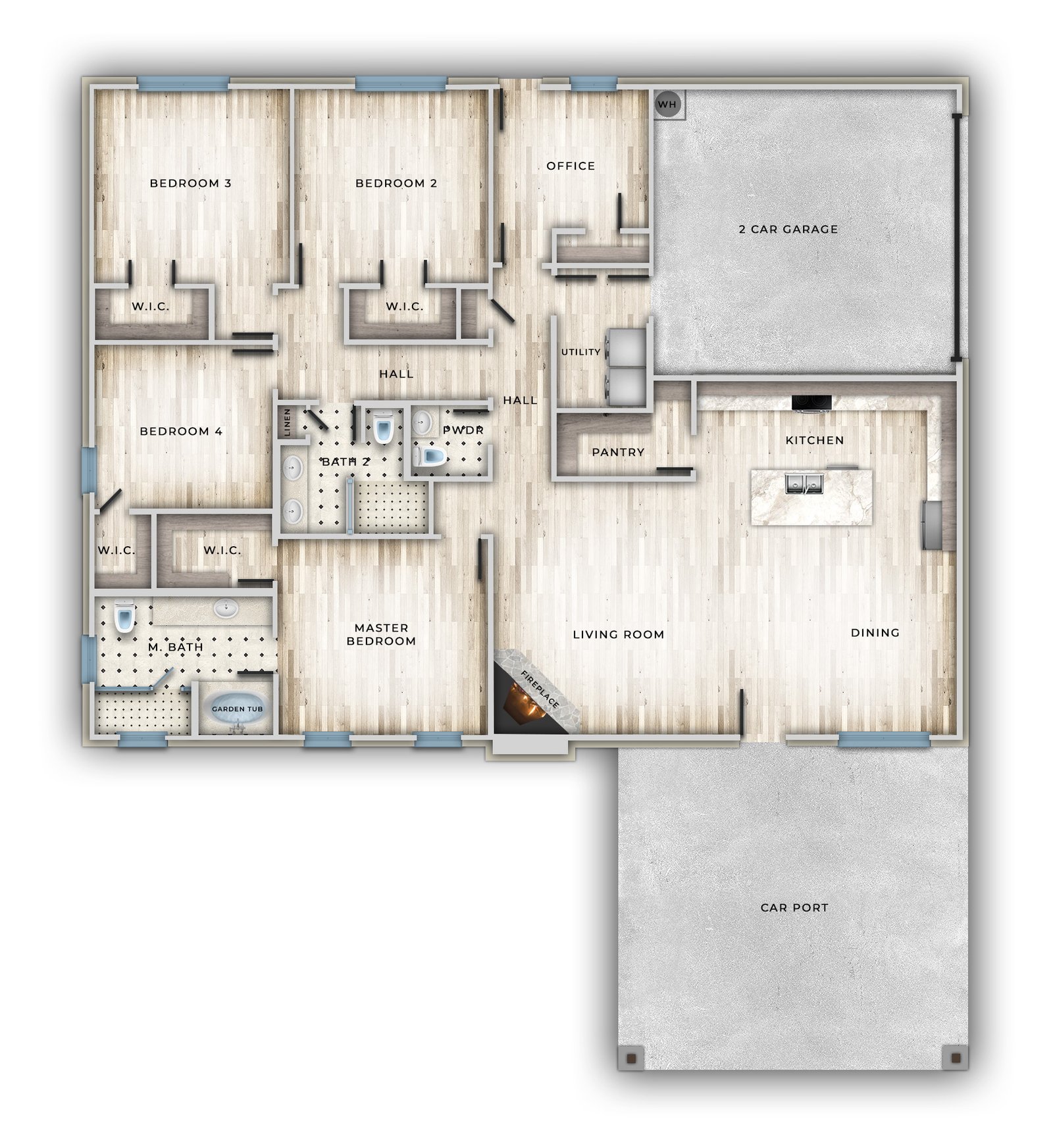

A2- First Floor Plan

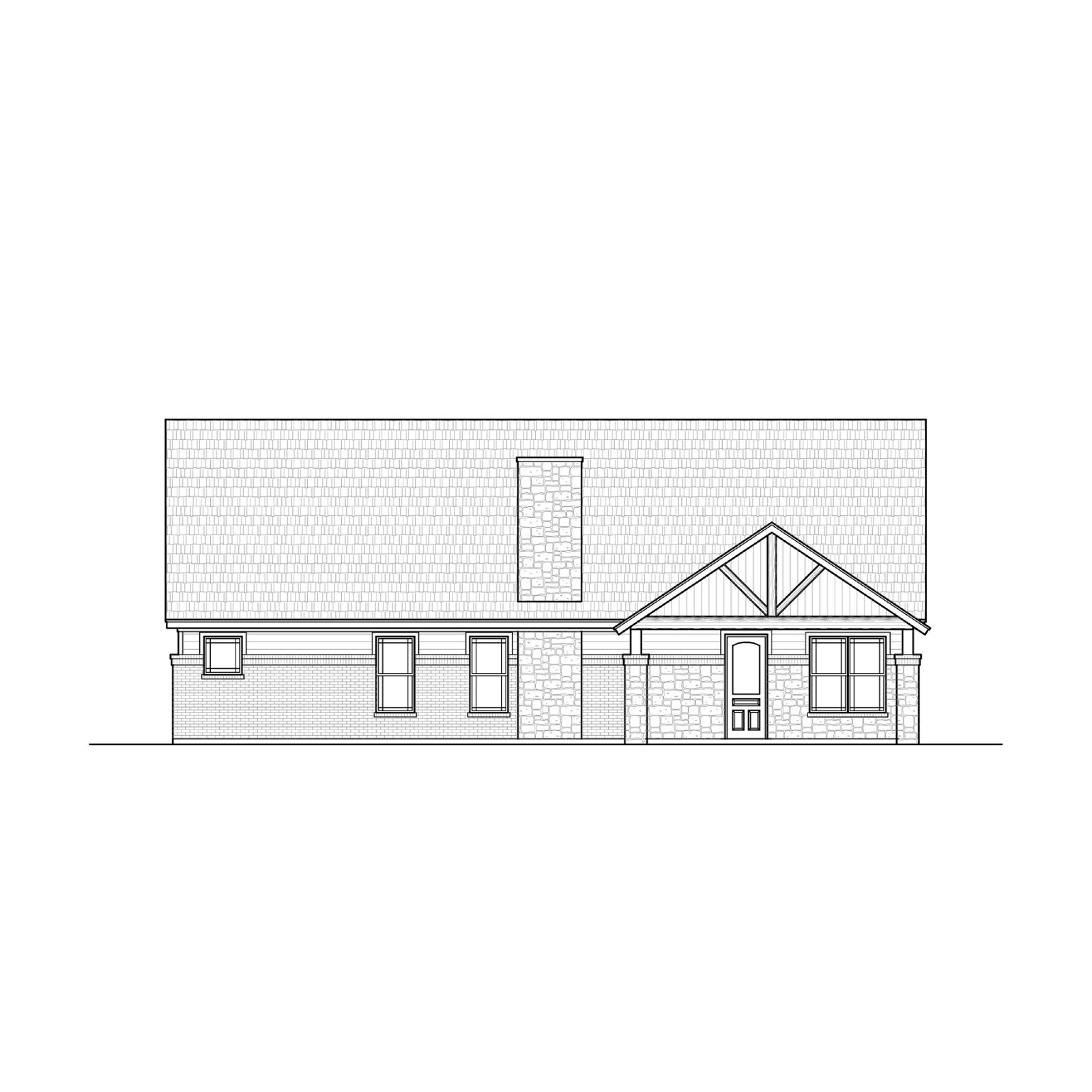

A3- Front & Rear Elevations
A4- Right & Left Elevations
A5- Roof Plan
E1- First Floor Electrical Plan
P1- Plumbing Plan
D1- General Details 1
D2- General Details 2
D3- General Details 3
D4- General Details 4
Blueprints That You Get
Lorem ipsum dolor sit amet consectetur adipisicing elit. A excepturi doloribus quasi vitae odio porro omnis repellendus libero iste sed neque quia, maiores atque ut laudantium inventore, id rerum error!
Reviews
There are no reviews yet.
