3473 Ezequiel
-
3473
sq/ft
-
3 Bed
-
2 Bath
-
2
House Construction Drawings
$1,783.91
Key Features
- Bedrooms: 3
- Baths: 2
- Garage Swing: Front Entry
- Stories: 2
Area
- House Area: 3473
- Total Area: 4351
Warning: Undefined array key "garage_area" in /home/u772247181/domains/familyhomefloorplans.com/public_html/wp-content/themes/dds/functions.php on line 112
Dimension
- Width: 39'-7"
- Depth: 86'-3 1/2"
- Height: 26'-9 1/2"
Exterior Wall
- Framing: 2x4
- Wall Finish: Stucco & Stone
Roof
- Primary pitch: 8:12
- Secondary Pitch: 4:12
House Interior
- Ceiling Height: 9'-0"
- Main living area ceiling height: 10'-0"
Description
Your Purchase includes an Architectural set in PDF format with the following contents:
C1- Revision Index, General Notes

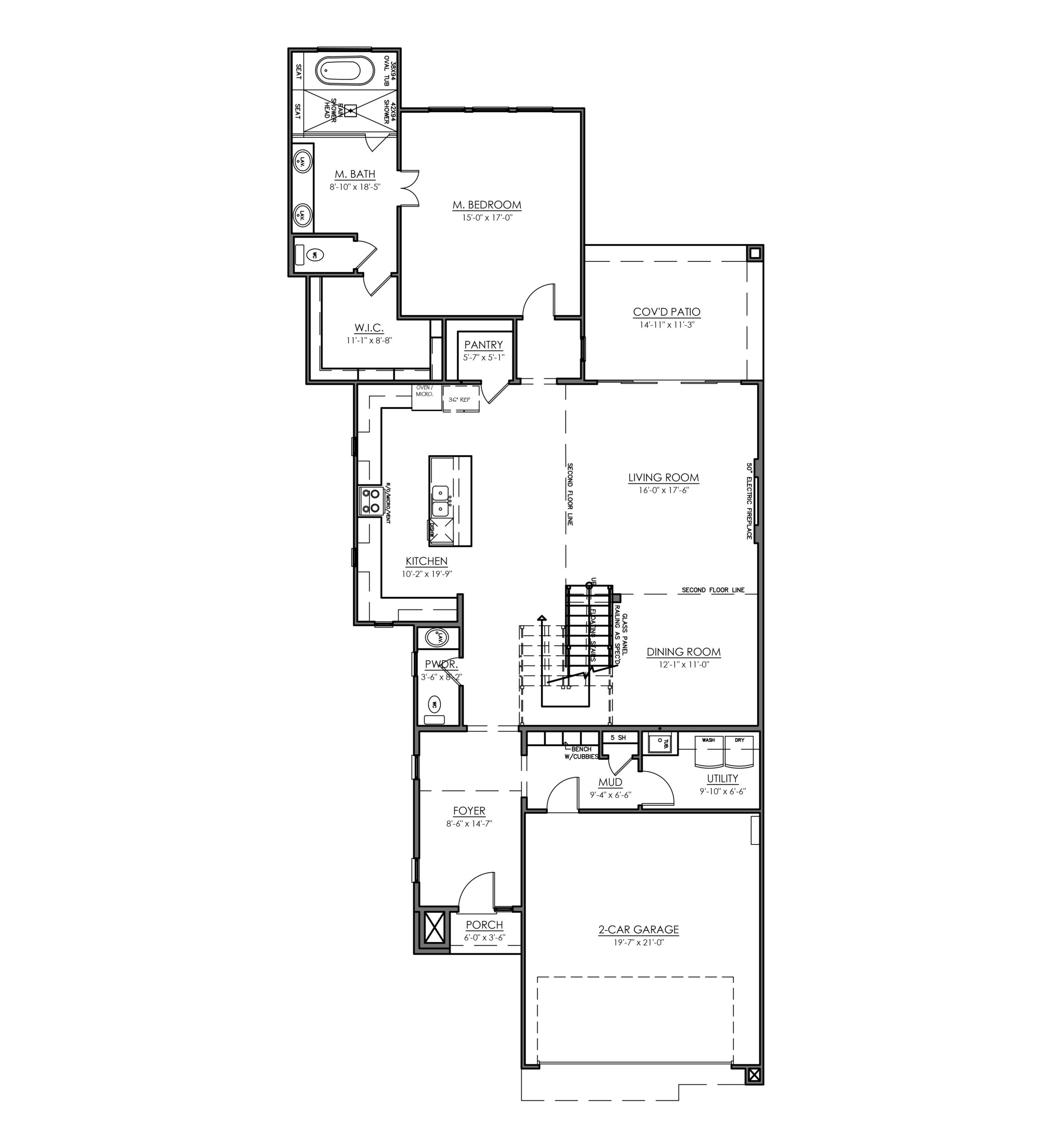

A1- First Floor Plan

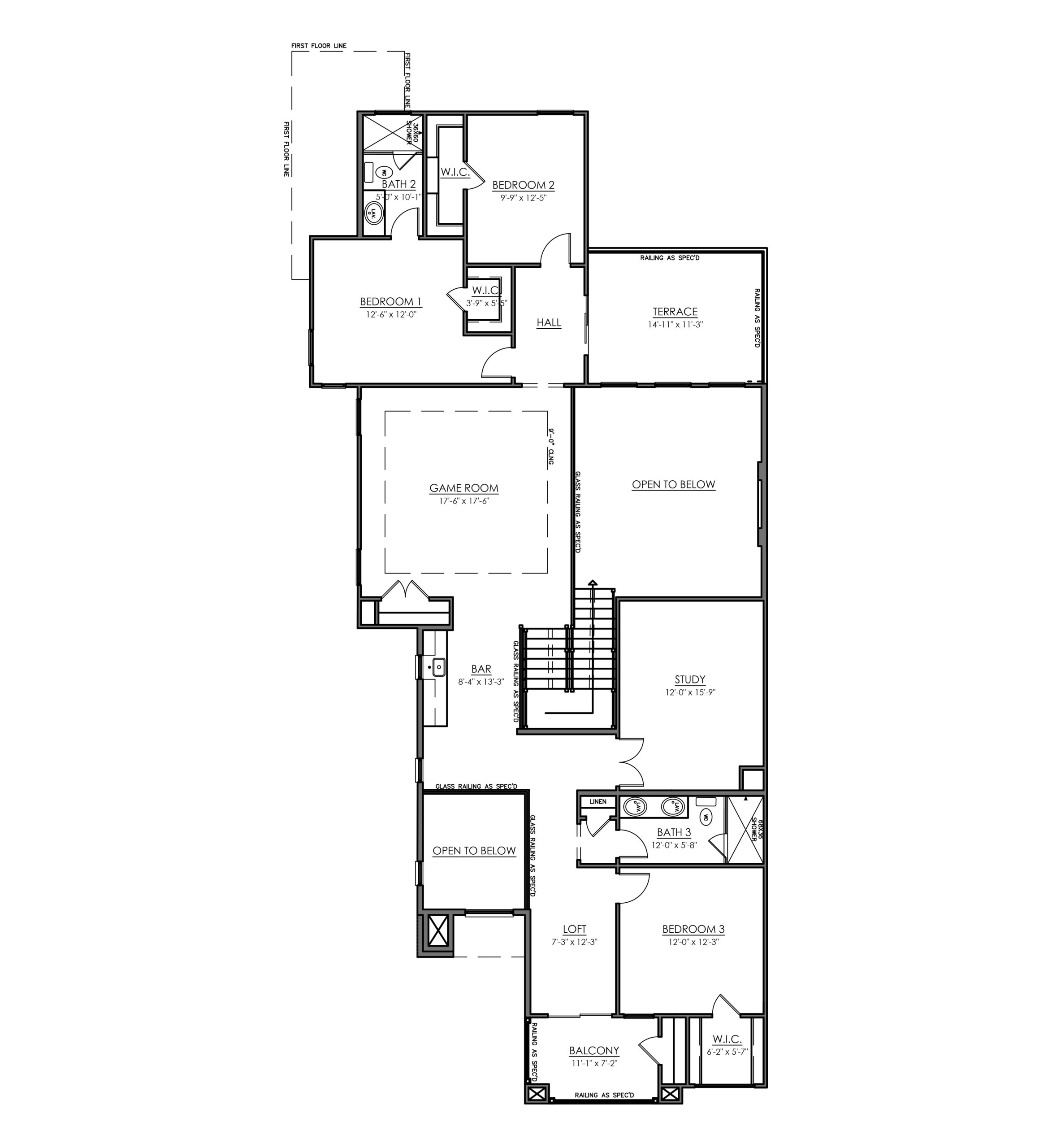

A2- Second Floor Plan
A3- Interior Sections
A4- Front & Rear Elevations
A5- Right & Left Elevations
A6- Roof Plan
P1- First Floor Plumbing Plan
P2- Second Floor Plumbing Plan
E1- First Floor Electrical Plan
E2- Second Floor Electrical Plan
D1- Details
Blueprints That You Get
Lorem ipsum dolor sit amet consectetur adipisicing elit. A excepturi doloribus quasi vitae odio porro omnis repellendus libero iste sed neque quia, maiores atque ut laudantium inventore, id rerum error!
