2462 Alamosa
2462 Alamosa - Image 2

2462 Alamosa

  • plan-area 2462 sq/ft
  • plan-area 4 Bed
  • plan-area 3 Bath
  • plan-area 1

House Construction Drawings

$1,351.36



Key Features

  • Bedrooms: 4
  • Baths: 3
  • Garage Swing: Side Entry
  • Stories: 1

Area

  • House Area: 2462
  • Total Area: 3296

    • Warning: Undefined array key "garage_area" in /home/u772247181/domains/familyhomefloorplans.com/public_html/wp-content/themes/dds/functions.php on line 112

Dimension

  • Width: 76'-9 1/2"
  • Depth: 50'- 4 1/2"
  • Height: 25'-1 1/2"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Brick Veneer

Roof

  • Primary pitch: 8:12

House Interior

  • Ceiling Height: 10'-0"
  • Main living area ceiling height: 14'-3"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

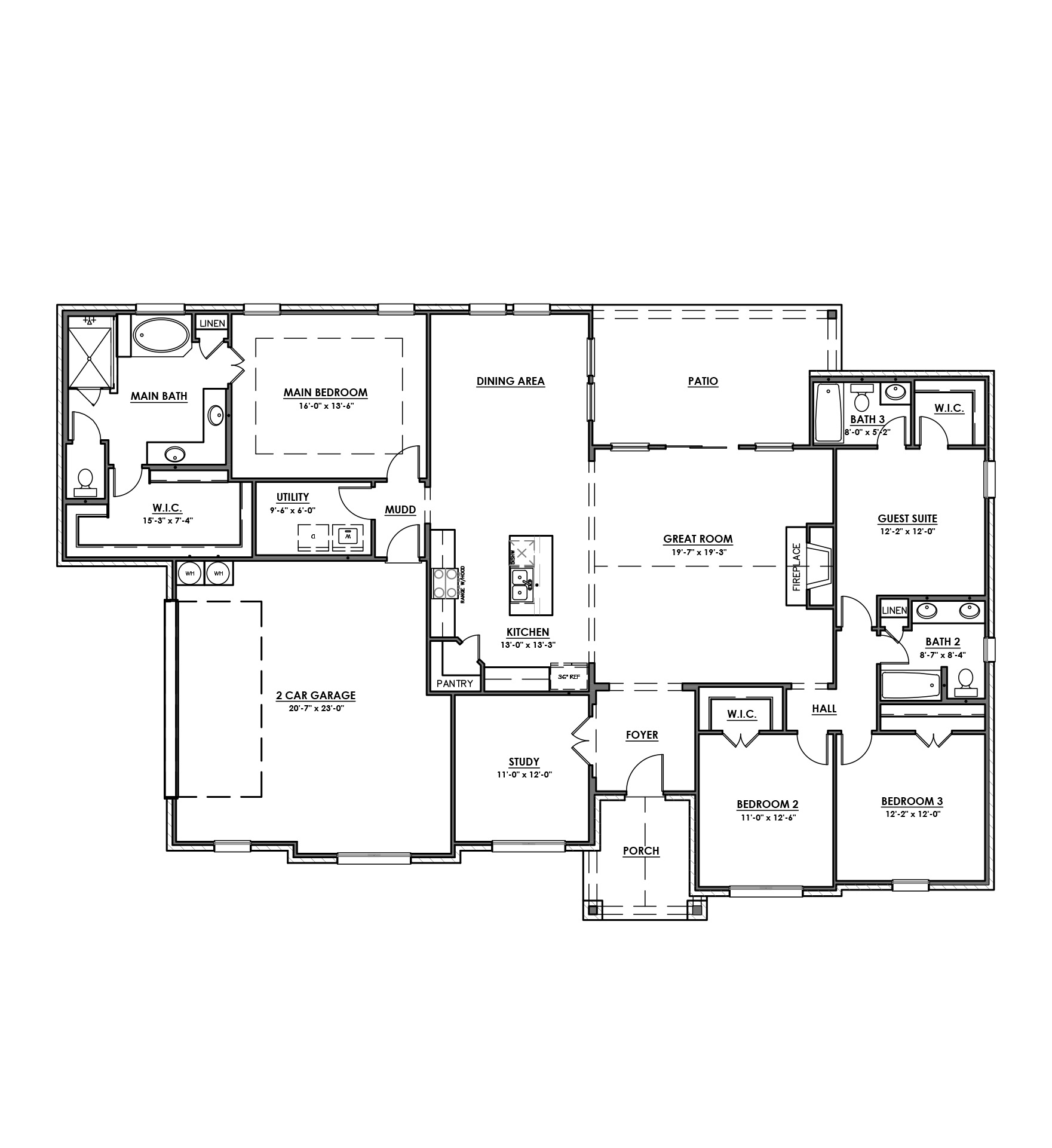

A2- First Floor Plan

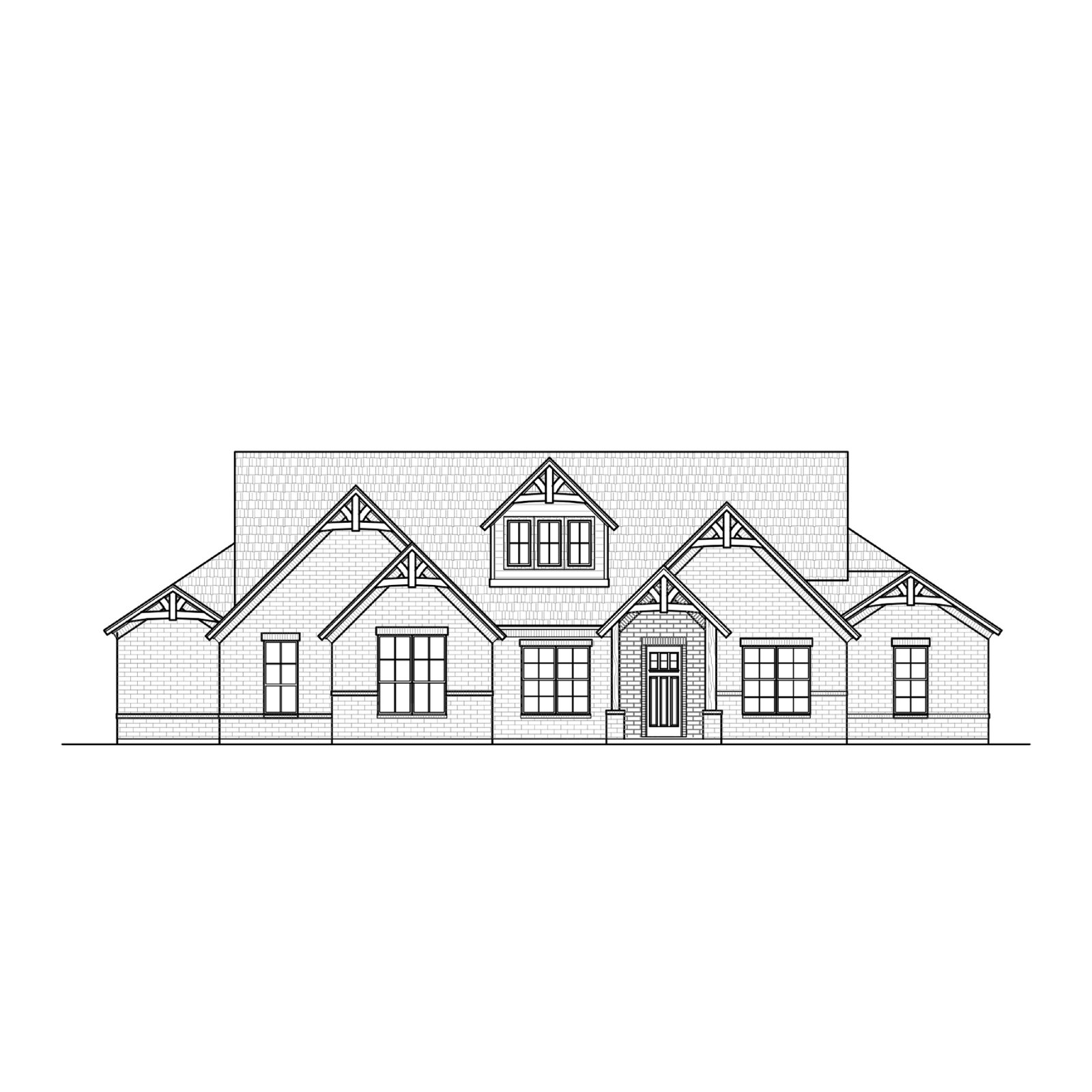

A3- Front & Rear Elevations

A4- Right & Left Elevations

A5- Roof Plan

E1- First Floor Electrical Plan

P1- First Floor Plumbing Plan

D1- General Details

D2- General Details

D3- General Details

D4- General Details

Reviews

There are no reviews yet.

Be the first to review “2462 Alamosa”

Your email address will not be published. Required fields are marked *
