2391 Amapola
2391 Amapola - Image 2

2391 Amapola

  • plan-area 2391 sq/ft
  • plan-area 4 Bed
  • plan-area 2.5 Bath
  • plan-area 1

House Construction Drawings

$1,464.11



Key Features

  • Bedrooms: 4
  • Baths: 2.5
  • Garage Swing: Side Entry
  • Stories: 1

Area

  • House Area: 2391
  • Total Area: 3571

Dimension

  • Width: 73'-6"
  • Depth: 67'-1"
  • Height: 24'-1"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Siding and Brick Veneer

Roof

  • Primary pitch: 9:12
  • Secondary Pitch: 12:12

House Interior

  • Ceiling Height: 10'-0"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

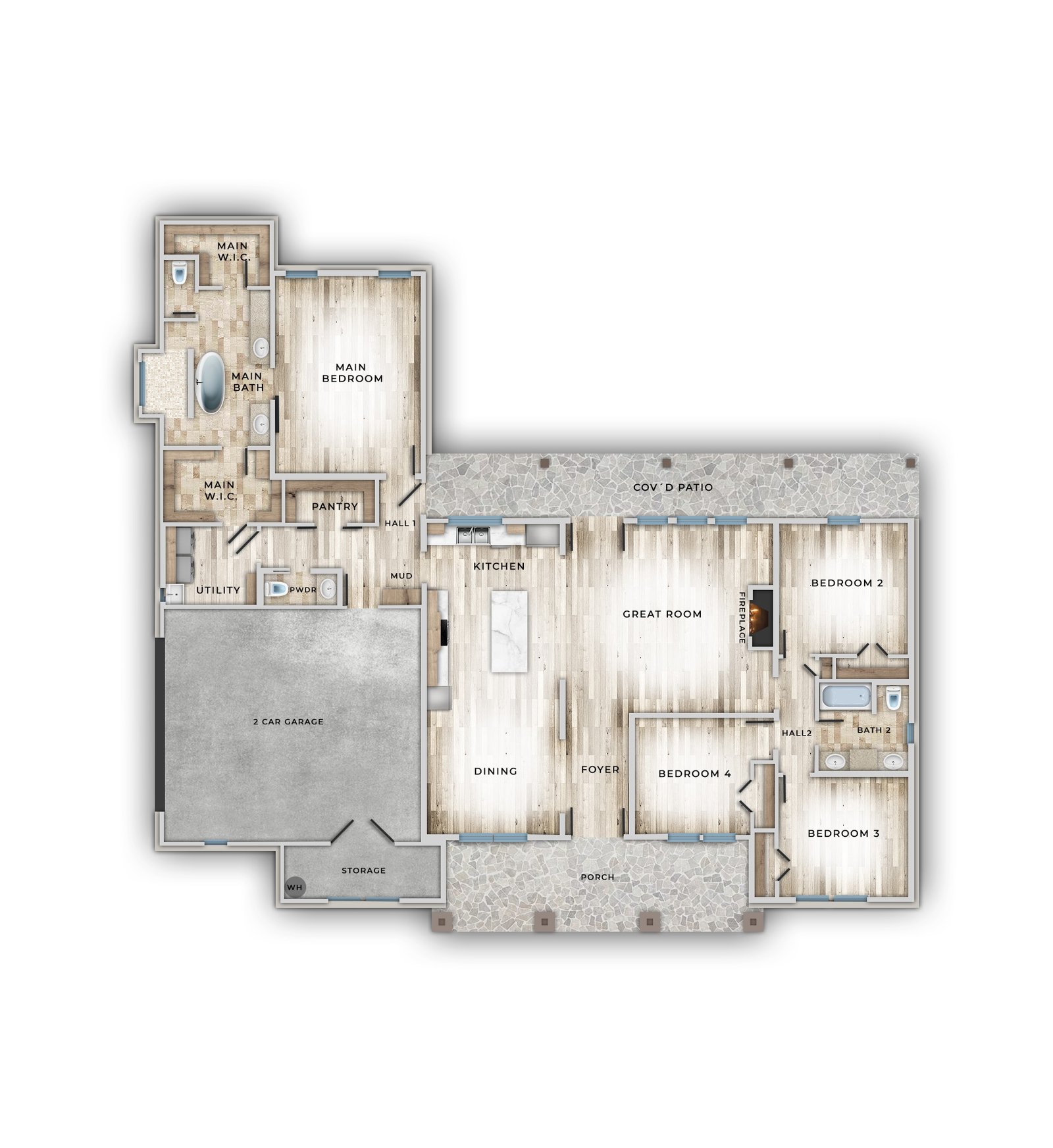

A1- First Floor Plan

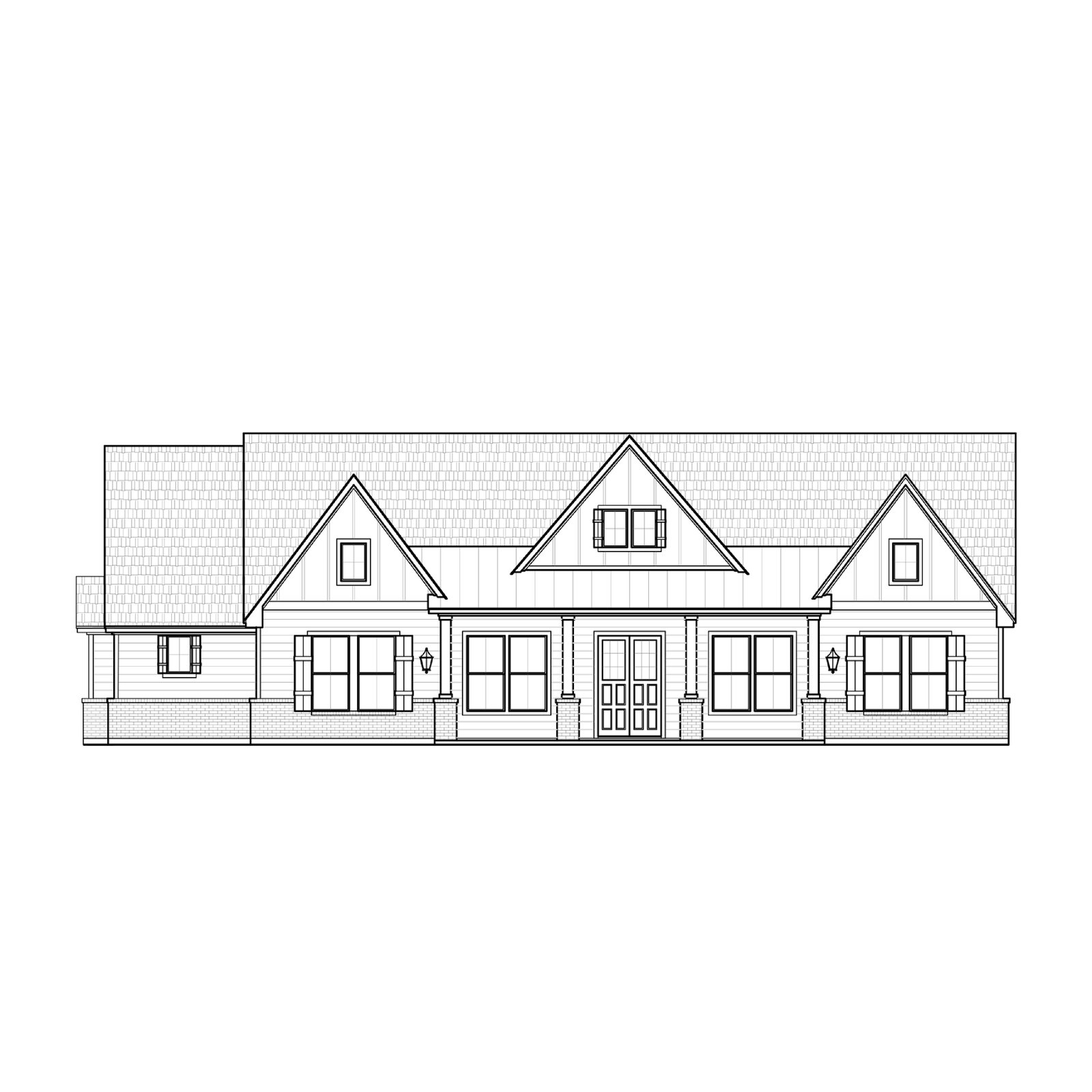

A2- Front & Rear Elevations

A3- Right & Left Elevations

A4- Roof Plan

A5- Details

E1- First Floor Electrical Plan

P1- First Floor Plumbing Plan
