2292 Tulip
2292 Tulip - Image 2
2292 Tulip - Image 3
2292 Tulip - Image 4

2292 Tulip

  • plan-area 2292 sq/ft
  • plan-area 4 Bed
  • plan-area 2.1 Bath
  • plan-area 1

House Construction Drawings

$1,220.16



Key Features

  • Bedrooms: 4
  • Baths: 2.1
  • Garage Swing: Front Entry
  • Stories: 1

Area

  • House Area: 2292
  • Total Area: 2976

    • Warning: Undefined array key "garage_area" in /home/u772247181/domains/familyhomefloorplans.com/public_html/wp-content/themes/dds/functions.php on line 112

Dimension

  • Width: 49'-8"
  • Depth: 69'-0"
  • Height: 27'-9"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Brick & Stone Veneer

Roof

  • Primary pitch: 8:12
  • Secondary Pitch: 10:12

House Interior

  • Ceiling Height: 10'-1"
  • Main living area ceiling height: 12'-1"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

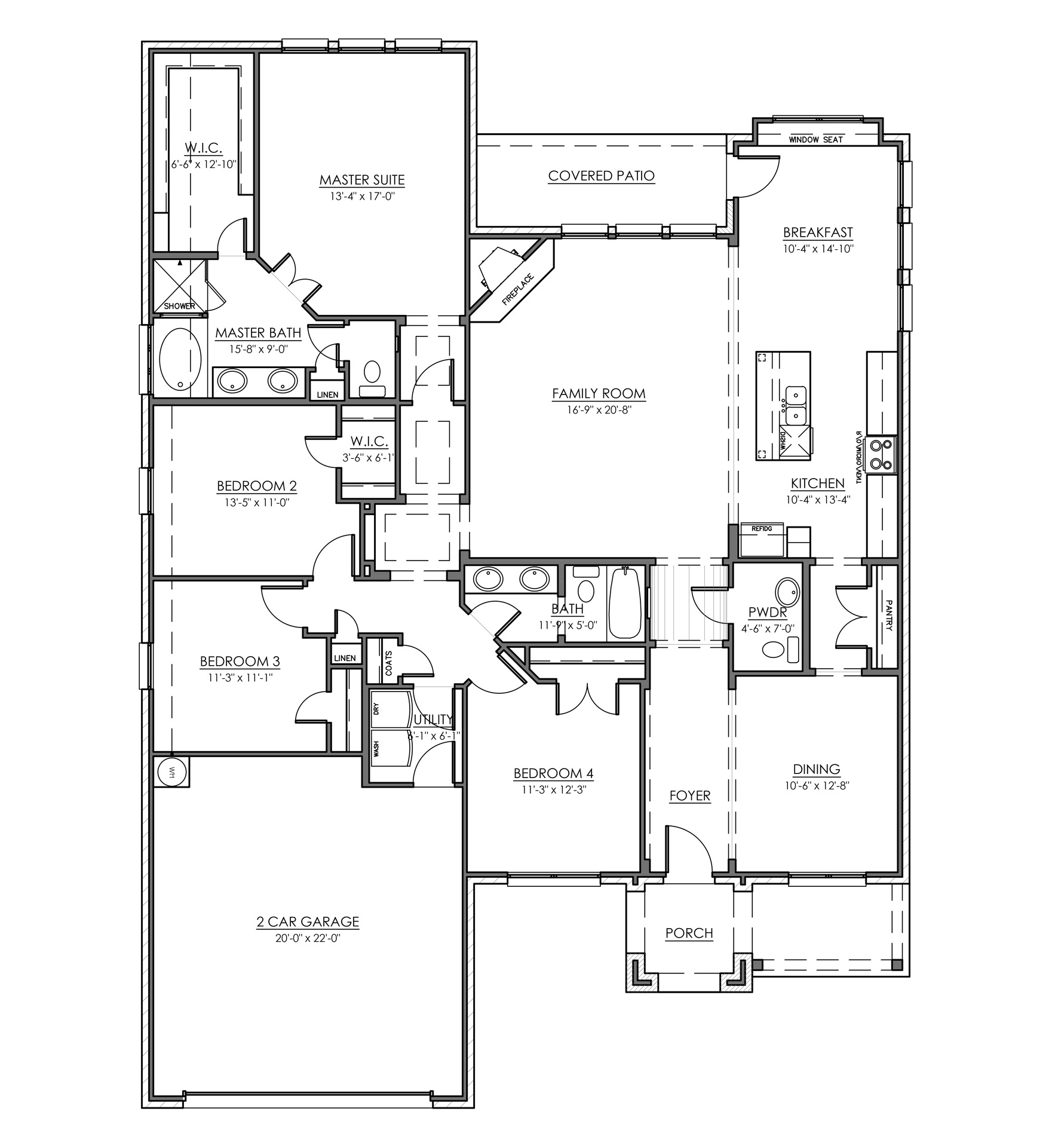

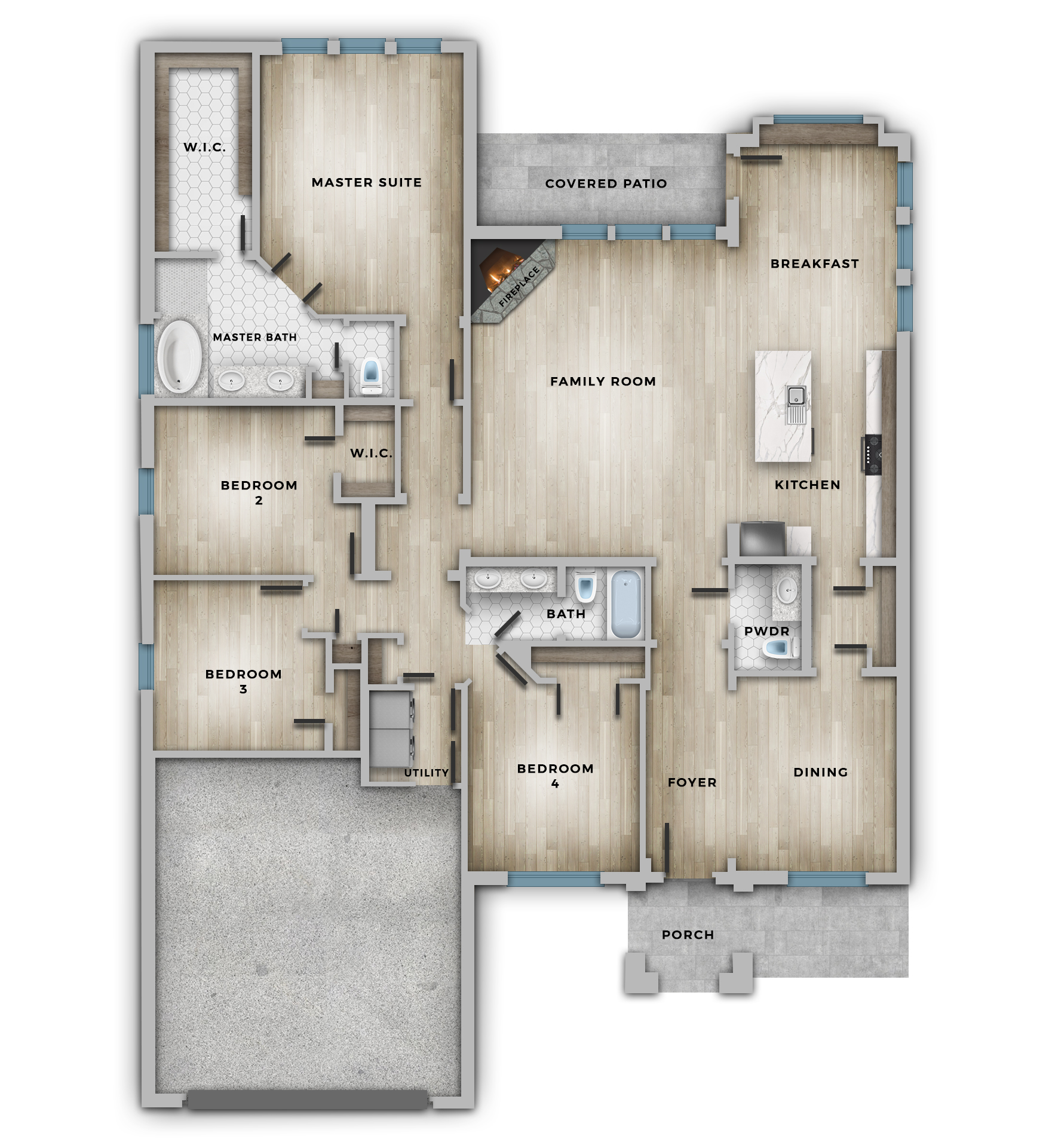

A2- First Floor Plan

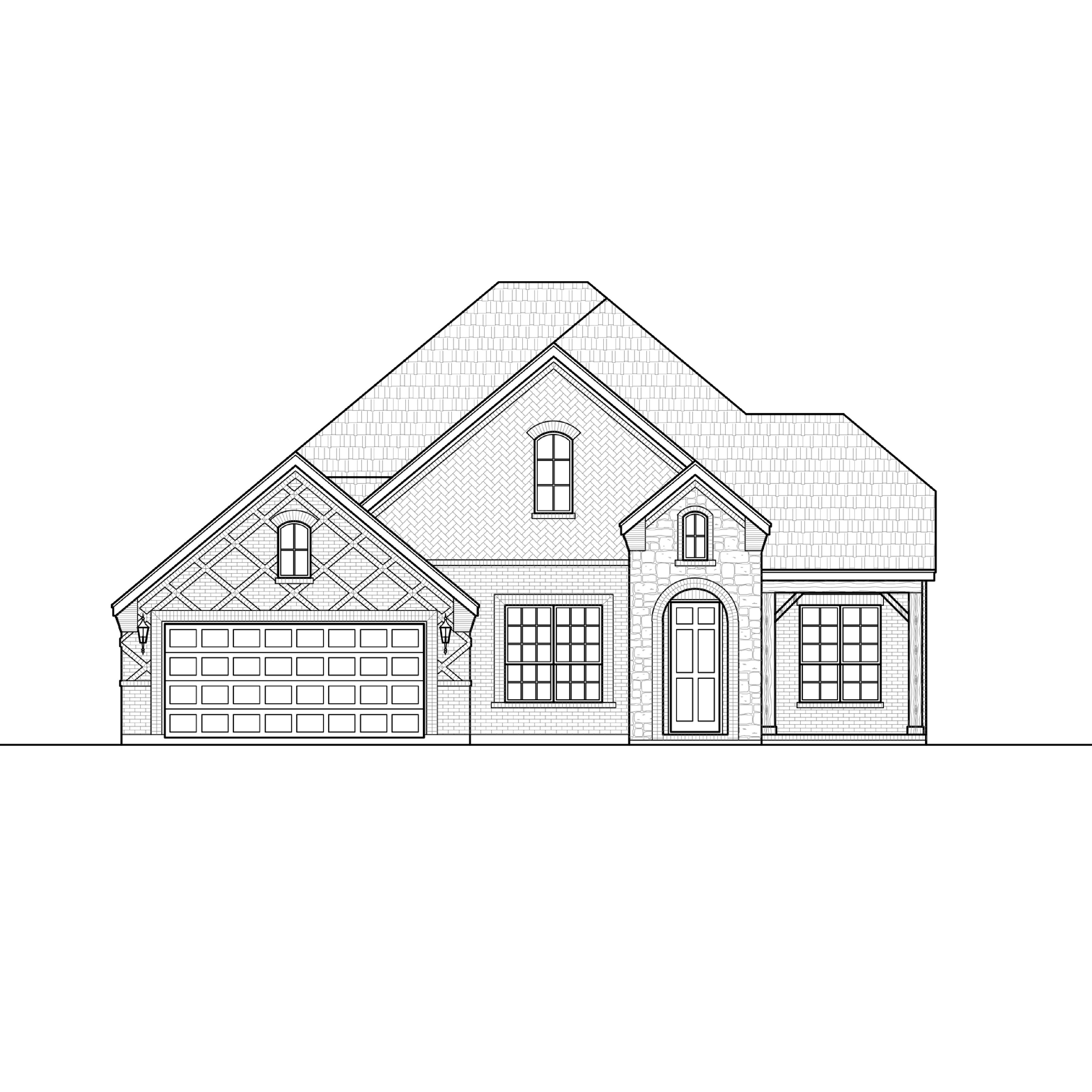

A3- Front & Rear Elevations

A4- Right & Left Elevations

A5- Roof Plan

I1- Interior Details

I2- Interior Details

E1- Electrical Plan

P1- Plumbing Plan

Reviews

There are no reviews yet.

Be the first to review “2292 Tulip”
