2273 Damian
2273 Damian - Image 2

2273 Damian

  • plan-area 2273 sq/ft
  • plan-area 3 Bed
  • plan-area 3 Bath
  • plan-area 1

House Construction Drawings

$1,202.94



Key Features

  • Bedrooms: 3
  • Baths: 3
  • Garage Swing: Front Entry
  • Stories: 1

Area

  • House Area: 2273
  • Total Area: 2934

Dimension

  • Width: 59'-10"
  • Depth: 58'-7 1/2"
  • Height: 23'-6 1/2"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Brick veneer

Roof

  • Primary pitch: 8:12

House Interior

  • Ceiling Height: 9'-0"
  • Main living area ceiling height: 10'-0"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

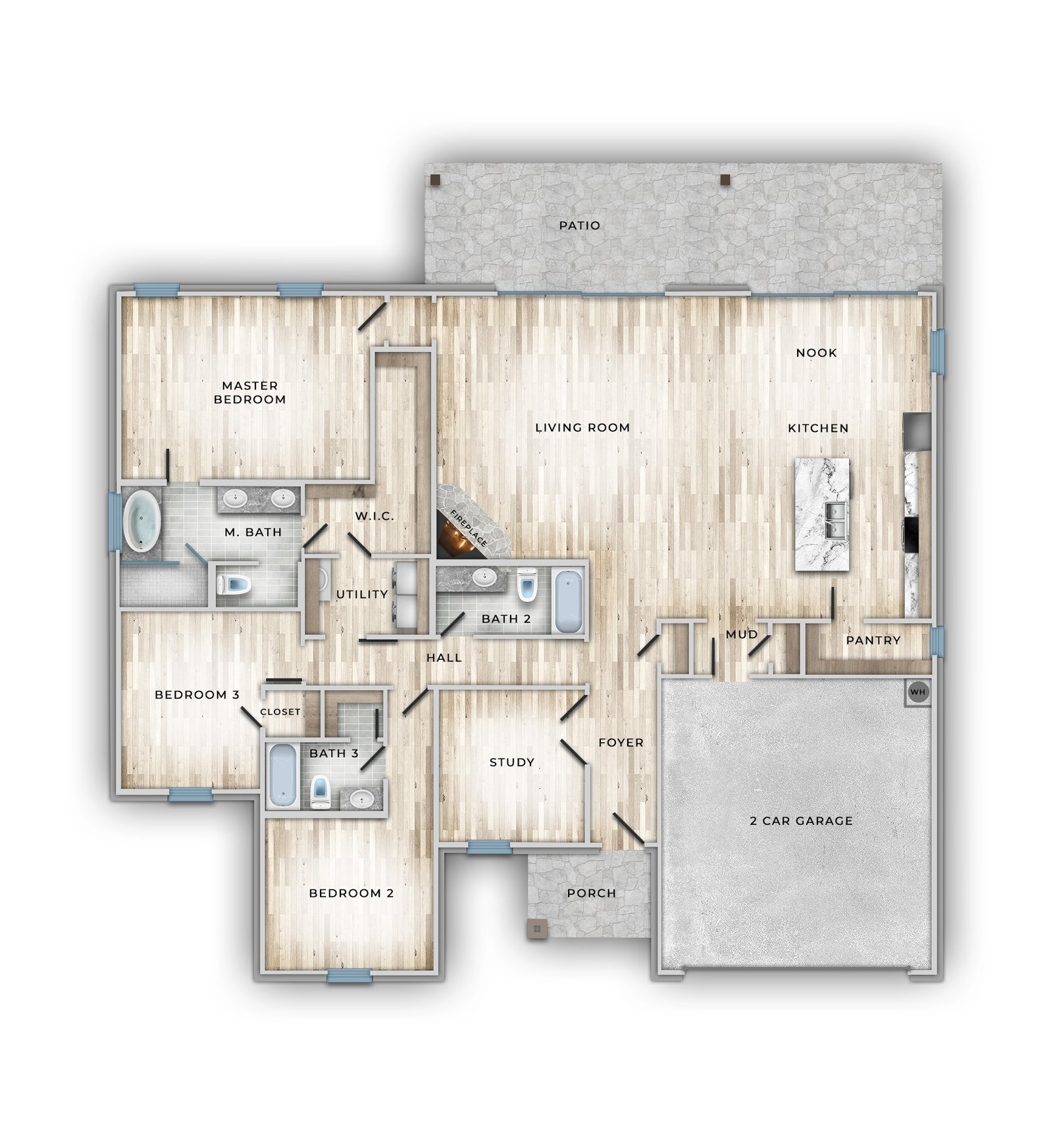

A2- First Floor Plan

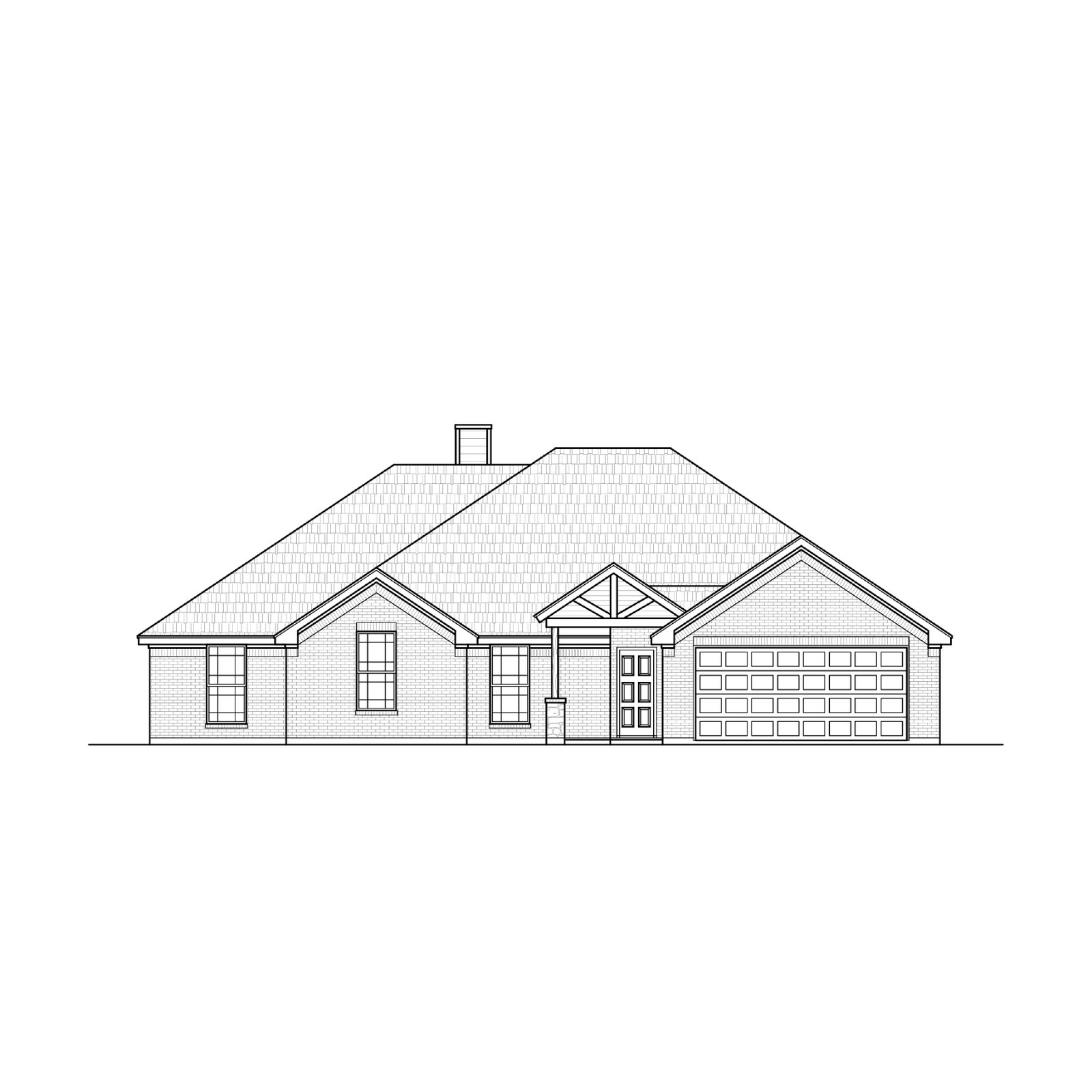

A3- Front & Rear Elevations

A4- Right & Left Elevations

A5- Roof Plan

E1- First Floor Electrical Plan

P1- Plumbing Plan

S5- Framing Wall Details

S6- Wall and Roof Rafter Details

S7- Ceiling and Roof Details

S8- Additional Details
