223 Mitchelle

  • plan-area 1925 sq/ft
  • plan-area 4 Bed
  • plan-area 2.1 Bath
  • plan-area 2

House Construction Drawings

$968.01



Key Features

  • Bedrooms: 4
  • Baths: 2.1
  • Garage Swing: Front Entry
  • Stories: 2

Area

  • House Area: 1925
  • Total Area: 2361

Dimension

  • Width: 43'-11"
  • Depth: 45'-11"
  • Height: 26'-0"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Brick & Stone Venner, Siding

Roof

  • Primary pitch: 8:12

House Interior

  • Ceiling Height: 9'-1"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

A1- Revision Index, General Notes

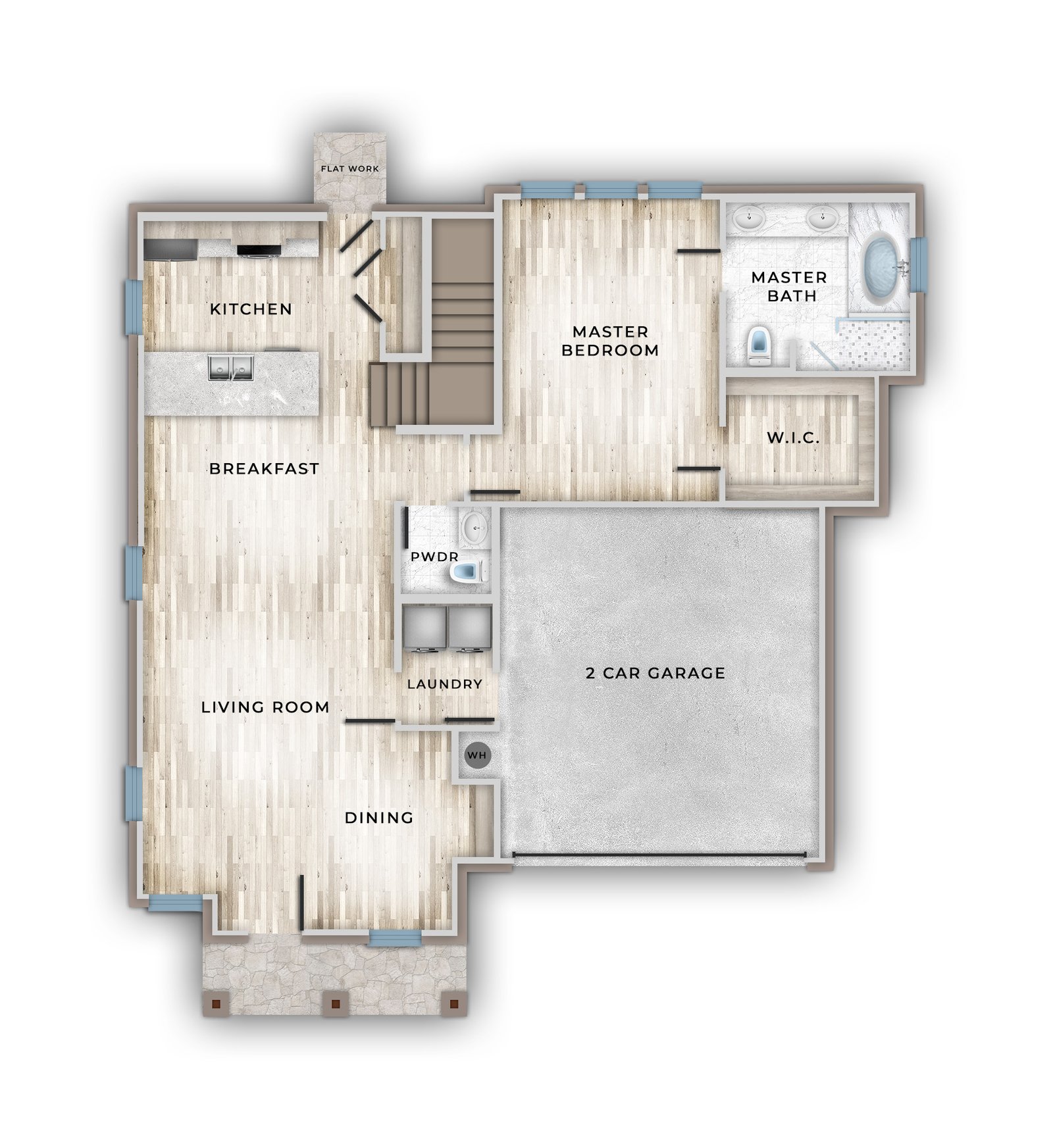

A2- First Floor Plan

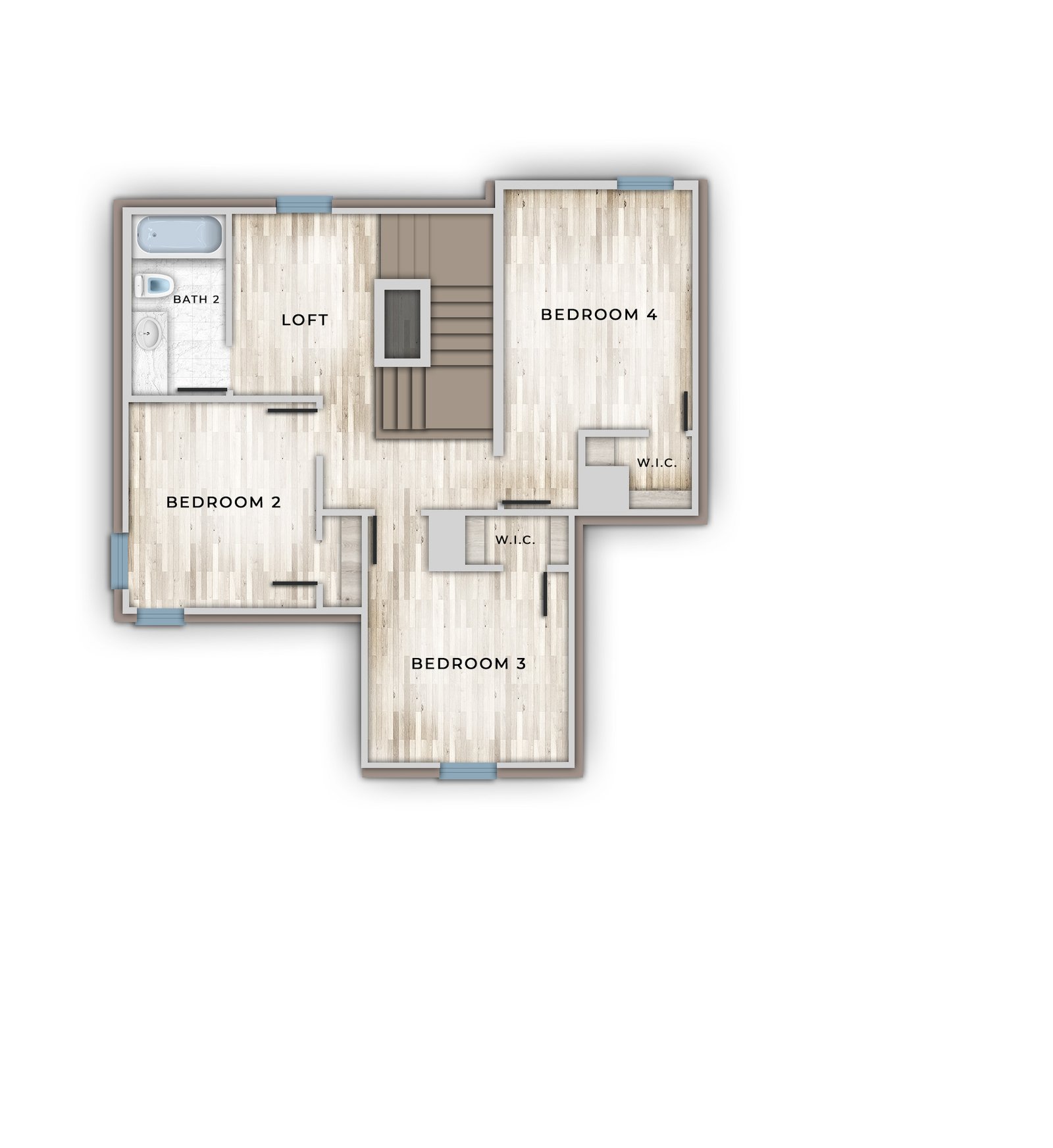

A3- Second Floor Plan

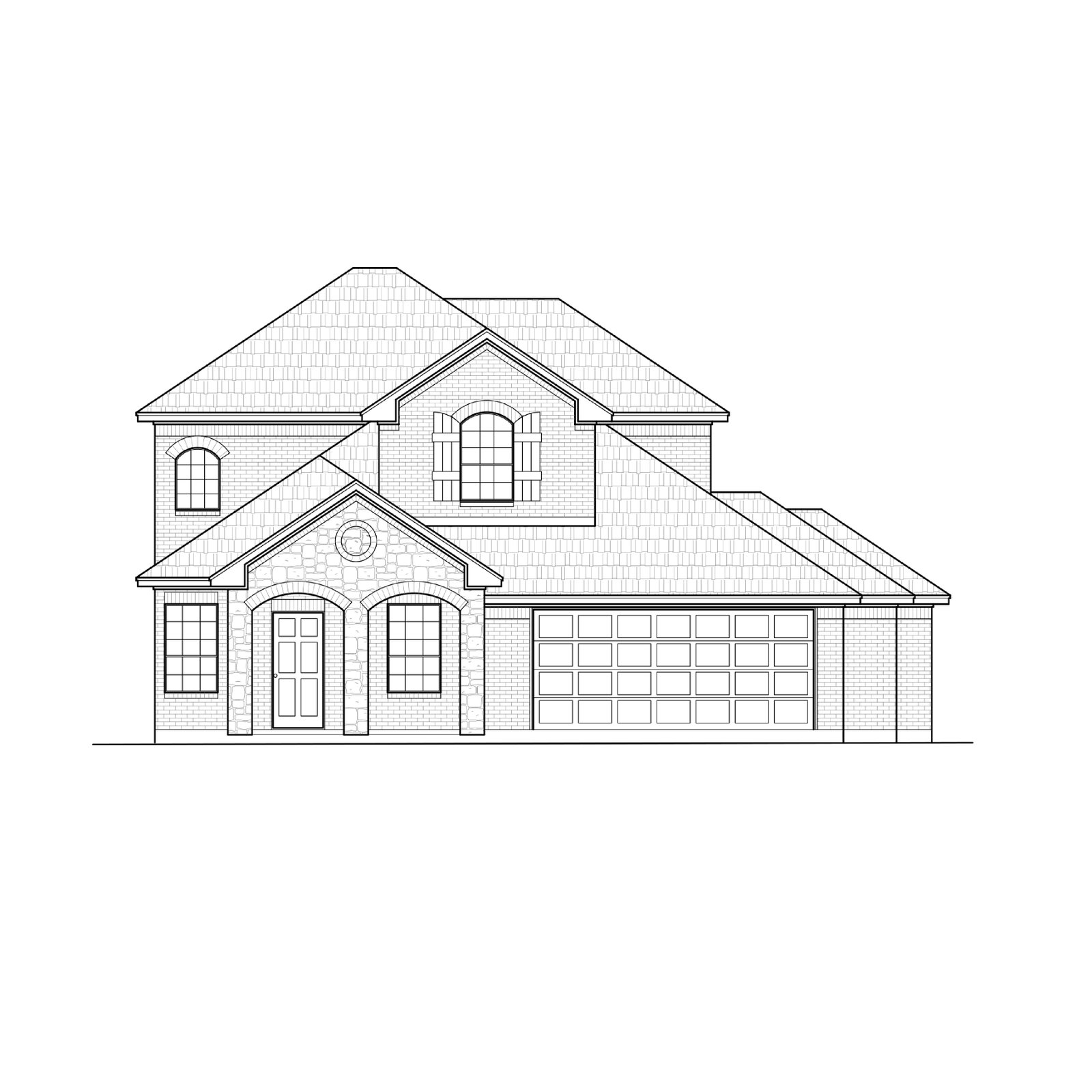

A4- Front & Rear Elevations

A5- Right & Left Elevations

A6- Roof Plan

I1- Interior Detail

D1- Details

E1- First Floor Electrical Plan

E2- Second Floor Electrical plan

P1- Plumbing Plan

F1- Foundation Plan
