2193 Mistletoe
2193 Mistletoe - Image 2

2193 Mistletoe

  • plan-area 2193 sq/ft
  • plan-area 3 Bed
  • plan-area 2.5 Bath
  • plan-area 1

House Construction Drawings

$1,259.52



Key Features

  • Bedrooms: 3
  • Baths: 2.5
  • Garage Swing: Side Entry
  • Stories: 1

Area

  • House Area: 2193
  • Total Area: 3072

Dimension

  • Width: 65'-1"
  • Depth: 60'-2"
  • Height: 23'-3"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Siding and Brick Veneer

Roof

  • Primary pitch: 6:12
  • Secondary Pitch: 12:12

House Interior

  • Ceiling Height: 10'-0"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

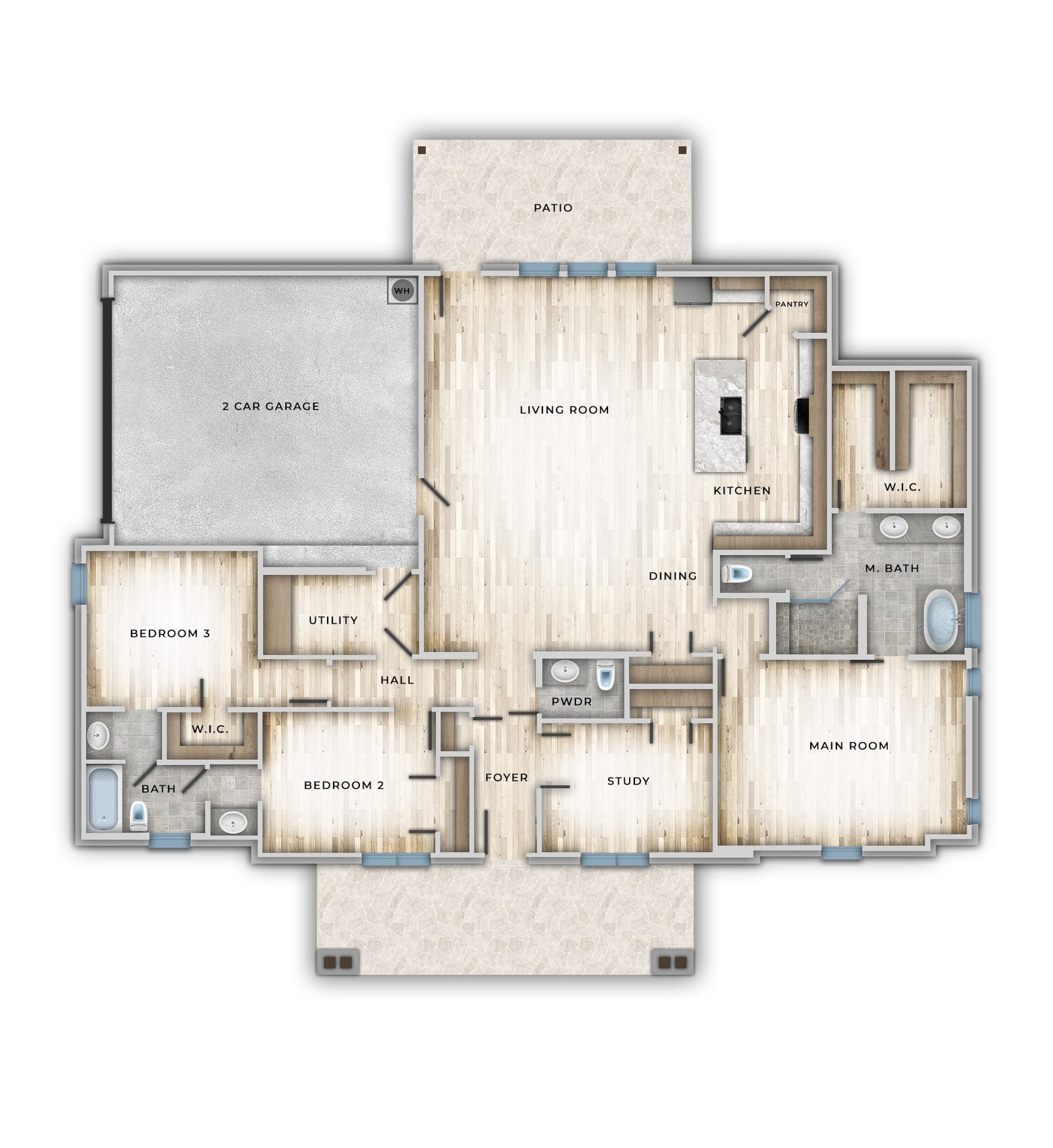

A1- First Floor Plan

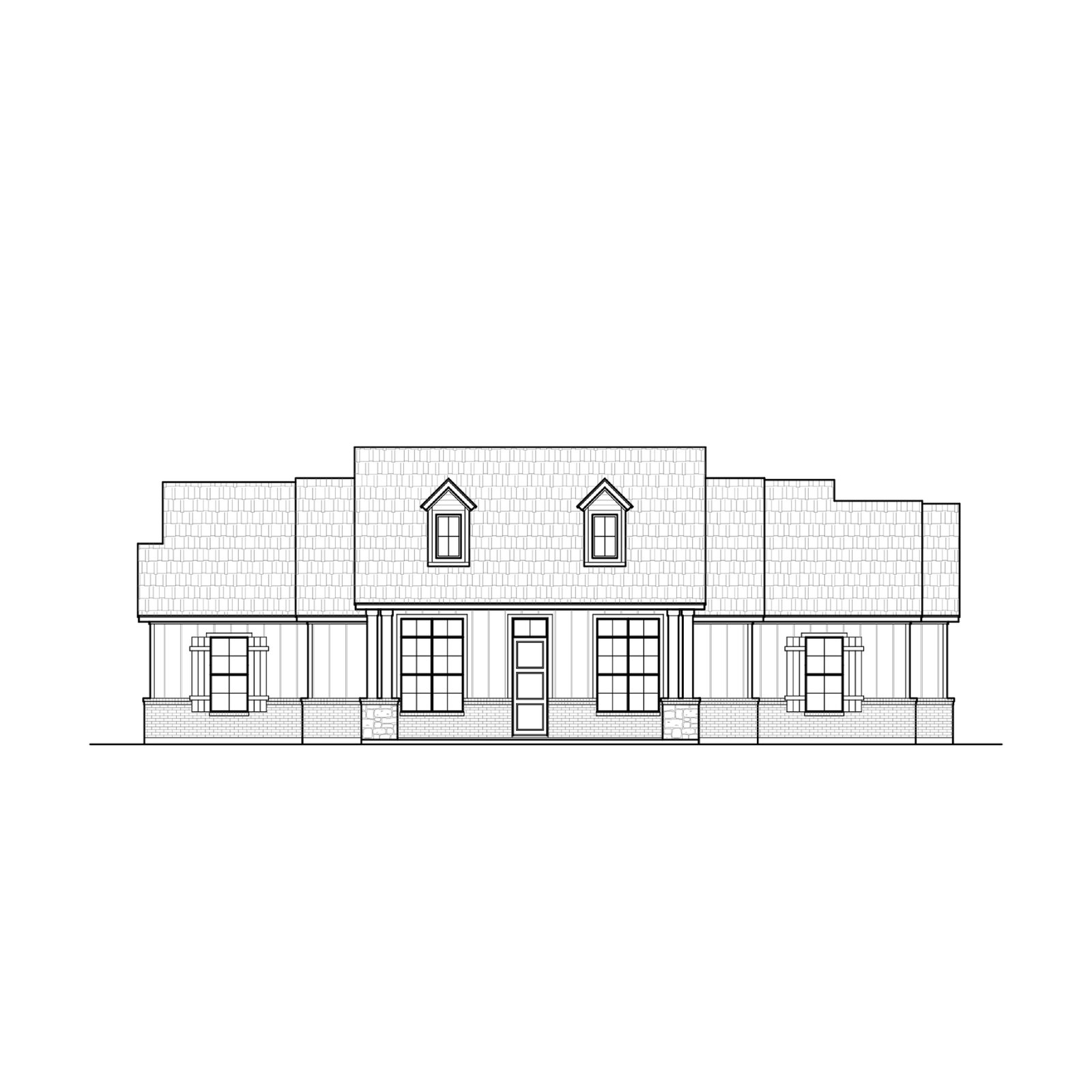

A2- Front & Rear Elevations

A3- Right & Left Elevations

A4- Roof Plan

E1- First Floor Electrical Plan

P1- Plumbing Plan

S1- Additional Details

S2- Additional Details

S3- Additional Details

S4- Additional Details
