2157 Pecan
2157 Pecan - Image 2
2157 Pecan - Image 3

2157 Pecan

  • plan-area 2157 sq/ft
  • plan-area 3 Bed
  • plan-area 2 Bath
  • plan-area 2

House Construction Drawings

$1,208.68



Key Features

  • Bedrooms: 3
  • Baths: 2
  • Garage Swing: Front Entry
  • Stories: 2

Area

  • House Area: 2157
  • Total Area: 2948

Dimension

  • Width: 39'-0"
  • Depth: 67'-5 1/2"
  • Height: 24'- 11 7/8"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Siding and Brick Veneer

Roof

  • Primary pitch: 8:12

House Interior

  • Ceiling Height: 9'-0"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

A1- Revision Index, General Notes

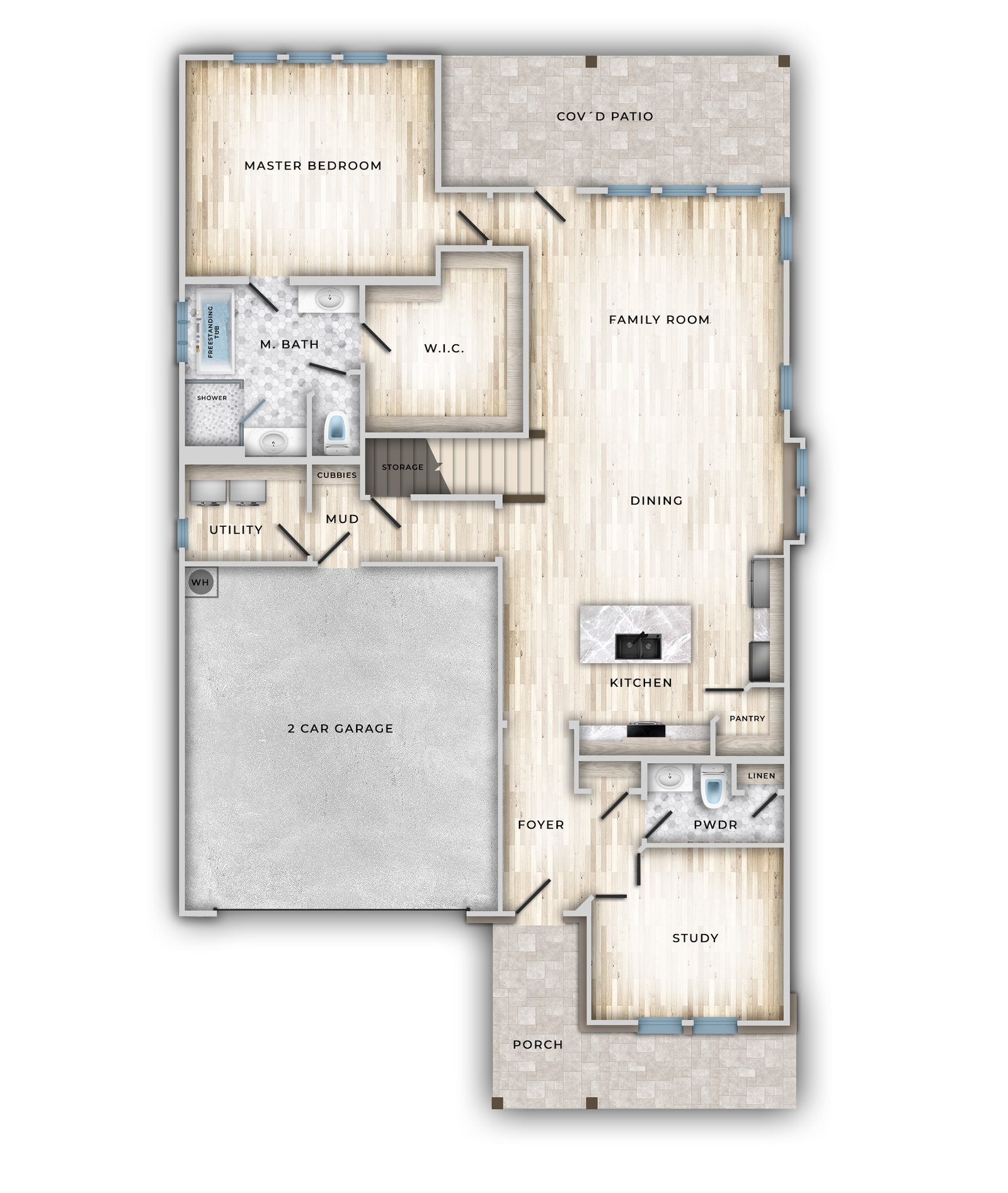

A2- First Floor Plan

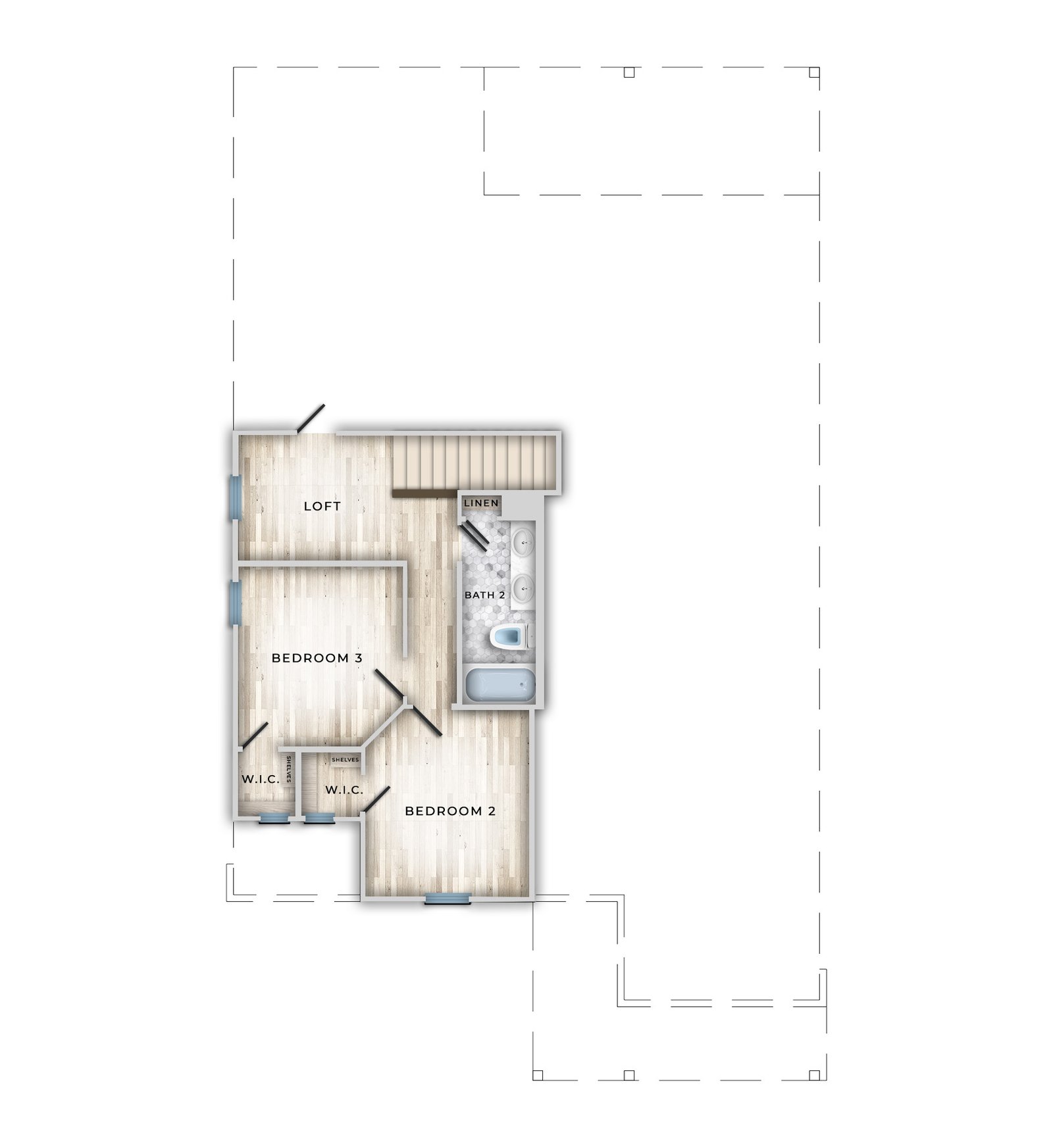

A3- Second Floor Plan

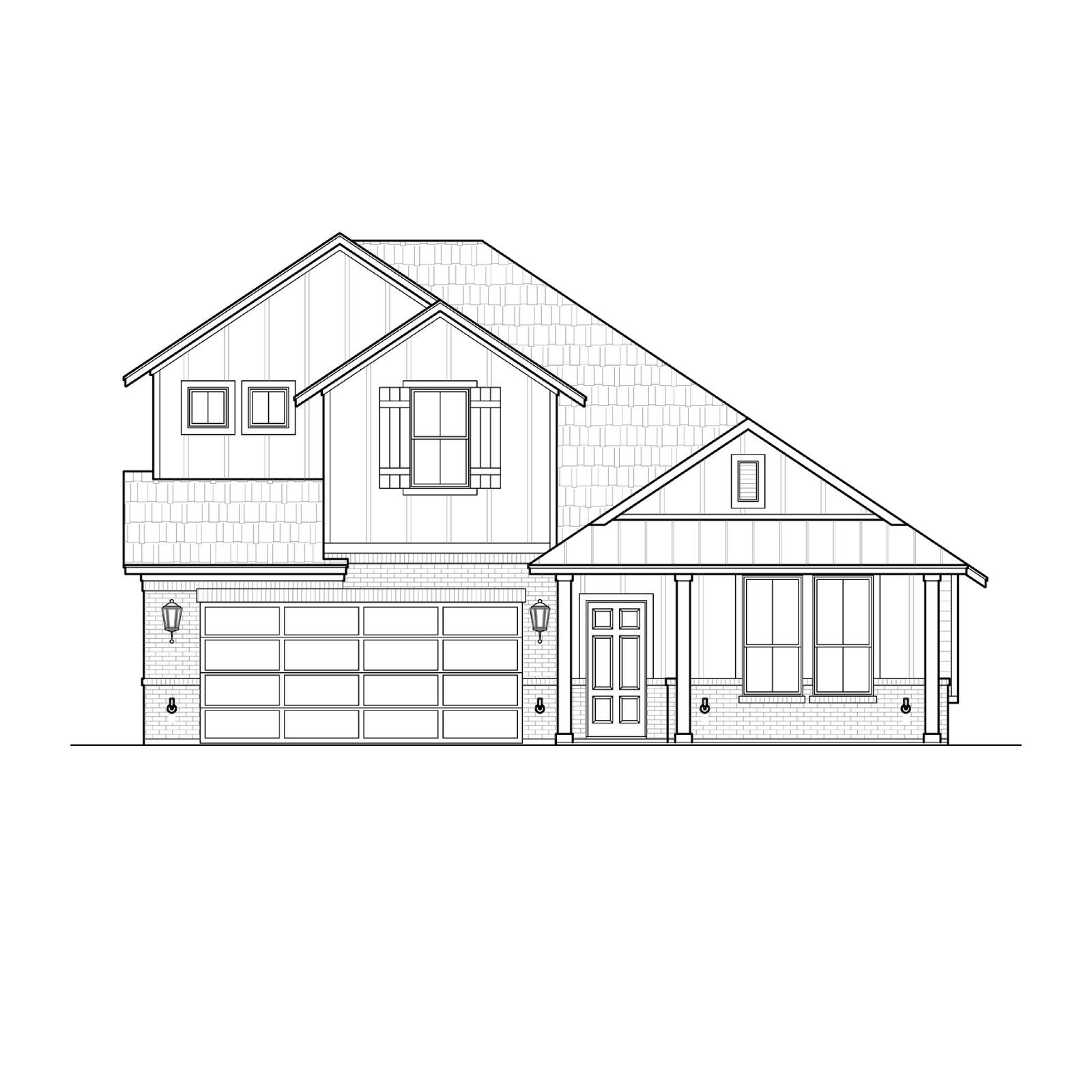

A4- Front & Rear Elevations

A5- Right & Left Elevations

A6- Roof Plan

D1- Details

E1- First Floor Electrical Plan

E2- Second Floor Electrical Plan

P1- First Floor Plumbing Plan

P2- Second Floor Electrical Plan
