2052 Tuxedo
2052 Tuxedo - Image 2

2052 Tuxedo

  • plan-area 2052 sq/ft
  • plan-area 3 Bed
  • plan-area 2 Bath
  • plan-area 1

House Construction Drawings

$1,139.80



Key Features

  • Bedrooms: 3
  • Baths: 2
  • Garage Swing: Front Entry
  • Stories: 1

Area

  • House Area: 2052
  • Total Area: 2780

Dimension

  • Width: 50'-11"
  • Depth: 67'-6"
  • Height: 30'-1/2"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Brick & Stone Veneer

Roof

  • Primary pitch: 12:12
  • Secondary Pitch: 8:12

House Interior

  • Ceiling Height: 10'-1"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

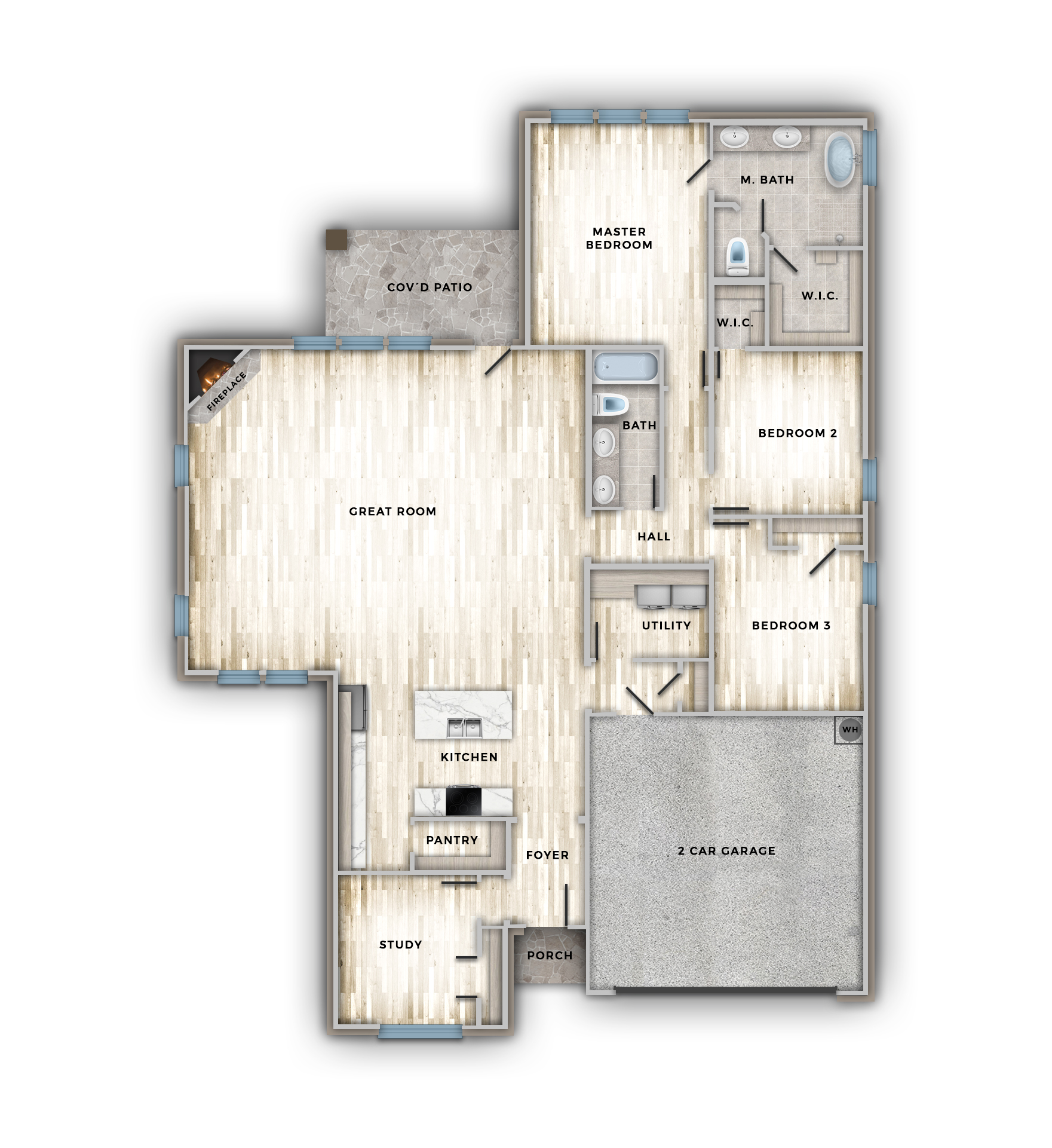

A1- First Floor Plan

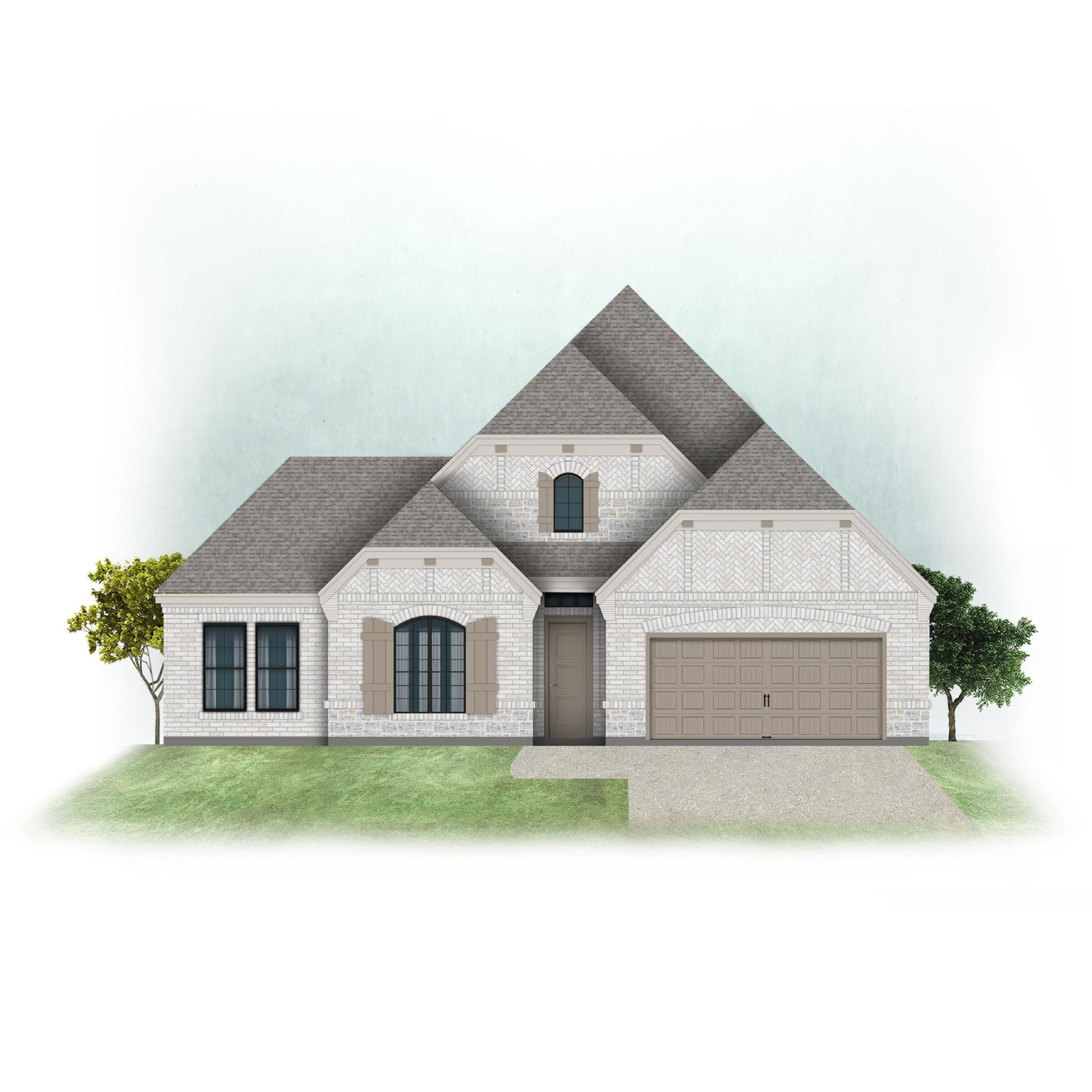

A2- Front & Rear Elevations

A3- Right & Left Elevations

A4- Roof Plan

E1- First Floor Electrical Plan

P1- Plumbing Plan

D1- Typical Details

D2- Typical Details

D3- Typical Details

D4- Typical Details
