1940 Beehive
- 1965 sq/ft
- 3 Bed
- 2 Bath
- 1
House Construction Drawings
$996.71
Key Features
- Bedrooms: 3
- Baths: 2
- Garage Swing: Front Entry
- Stories: 1
Area
- House Area: 1965
- Total Area: 2431
Dimension
- Width: 39'-11"
- Depth: 66'-11"
- Height: 18'-3"
Exterior Wall
- Framing: 2x4
- Wall Finish: Brick & Stone Veneer
Roof
- Primary pitch: 6:12
House Interior
- Ceiling Height: 8'-0"
- Main living area ceiling height: 9'-0"
Description
Your Purchase includes an Architectural set in PDF format with the following contents:
A1- Revision Index, General Notes

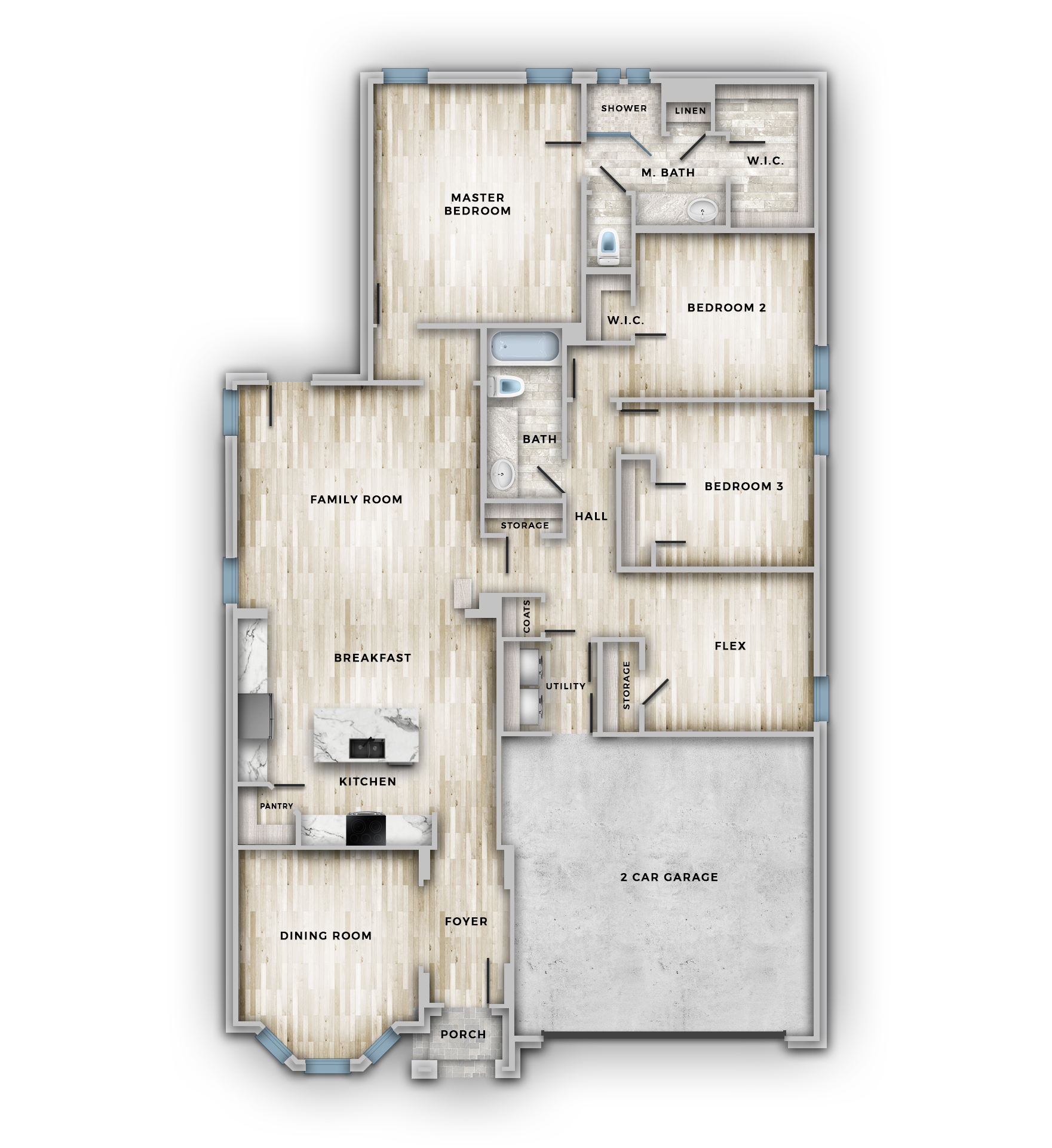

A2- First Floor Plan
A3- Master Bath + Fire Place Option

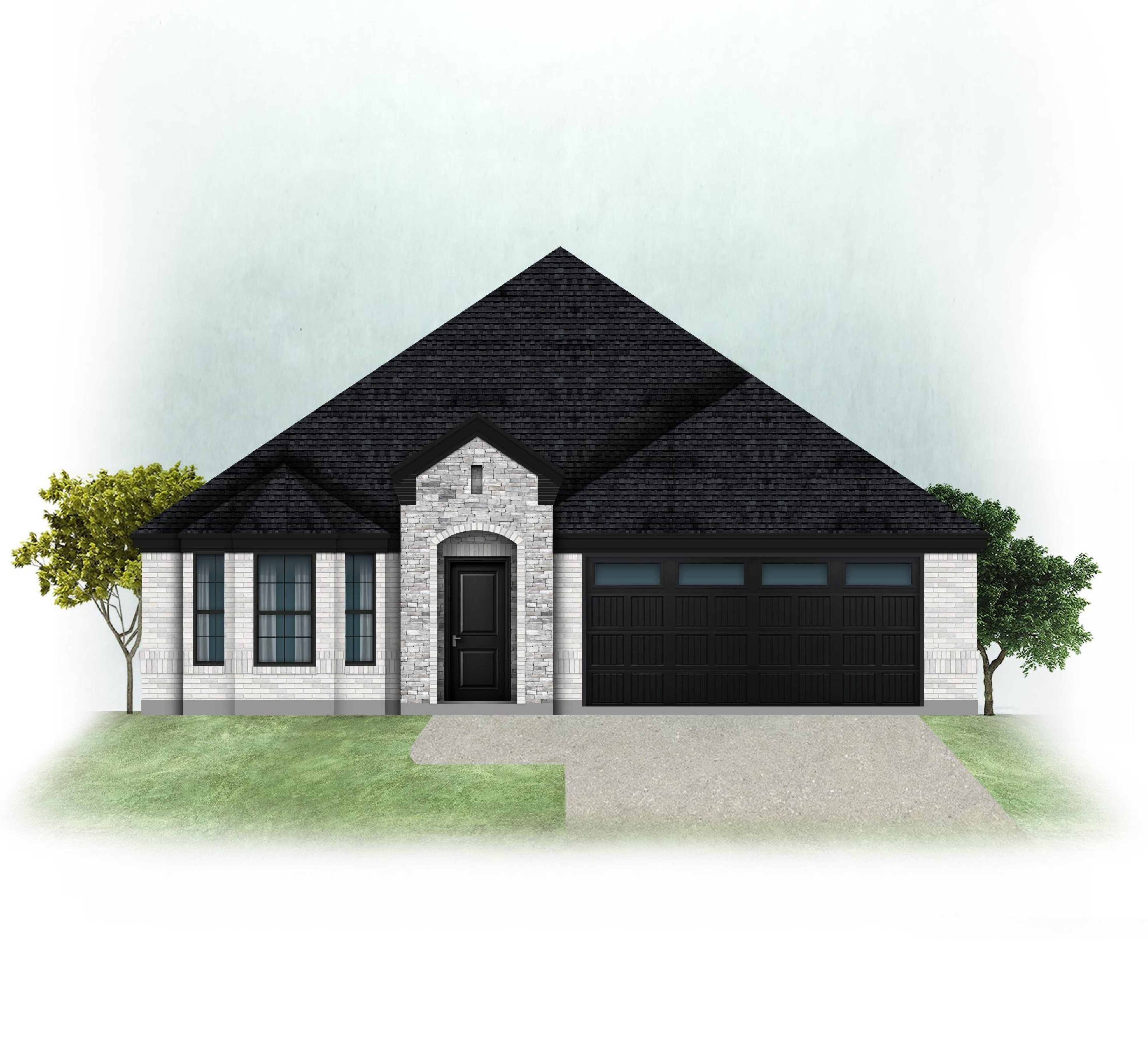

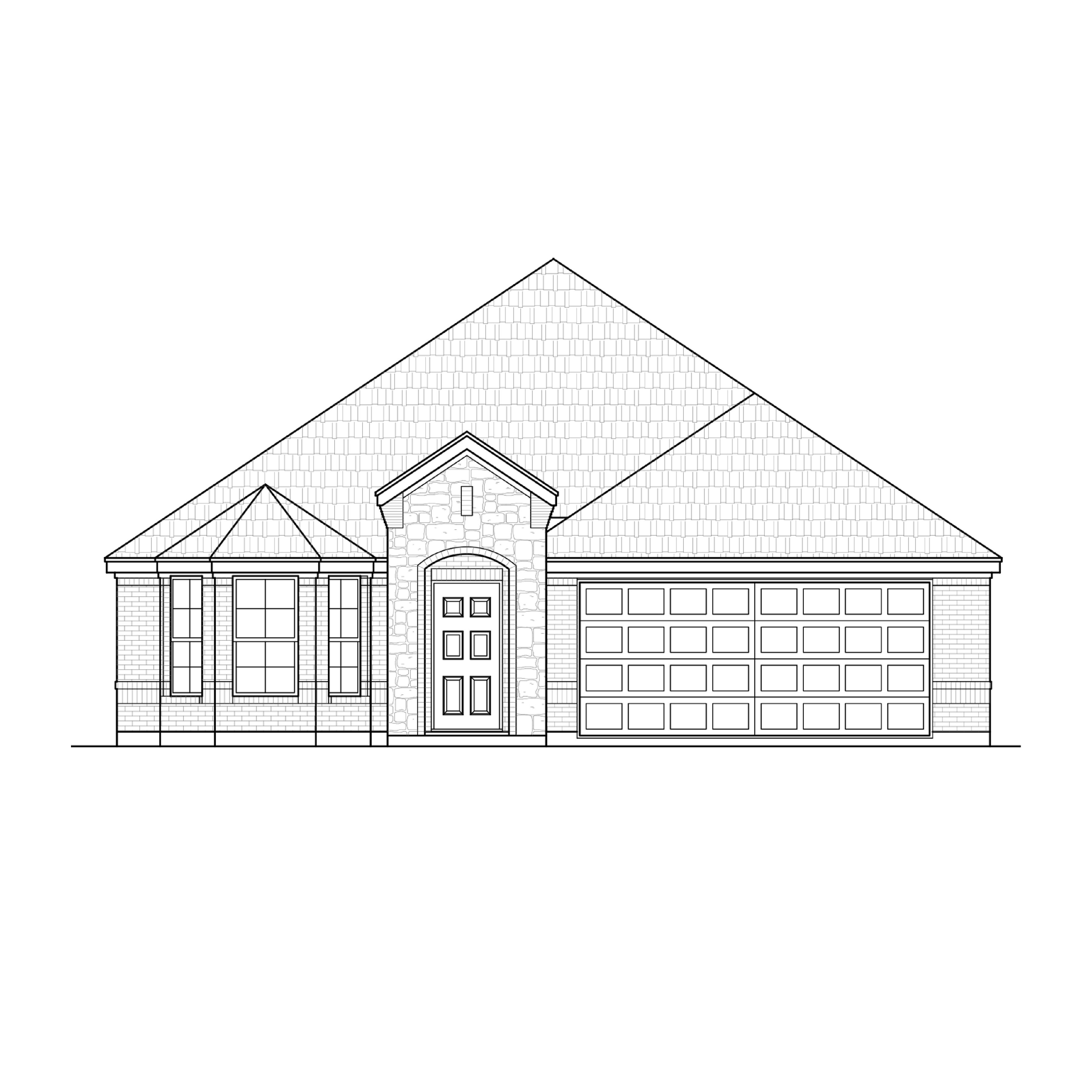

A4- Front & Rear Elevations
A5- Right & Left Elevations
A6- Front & Rear Elevations (8:12 Roof Option)
A7- Right & Left Elevations (8:12 Roof Option)
A8- Roof Plan
A9- Roof Plan (8:12 Option)
A10- Covered Patio Option
A11- Covered Patio (8:12 Roof Pitch Option)
I1- Interior Details
E1- First Floor Electrical Plan
E2- First Floor Master Bath + Fire Place Electrical Plan
