1862 Monica
-
1811
sq/ft
-
3 Bed
-
2 Bath
-
1
House Construction Drawings
$1,103.31
Key Features
- Bedrooms: 3
- Baths: 2
- Garage Swing: Side Entry
- Stories: 1
Area
- House Area: 1811
- Total Area: 2691
Dimension
- Width: 65'-2"
- Depth: 49'-5 1/2"
- Height: 23'-0"
Exterior Wall
- Framing: 2x4
- Wall Finish: Brick Venner, Siding
Roof
- Primary pitch: 12:12
- Secondary Pitch: 8:12
House Interior
- Ceiling Height: 9'-0"
- Main living area ceiling height: 11'-0"
Description
Your Purchase includes an Architectural set in PDF format with the following contents:
A1- Revision Index, General Notes

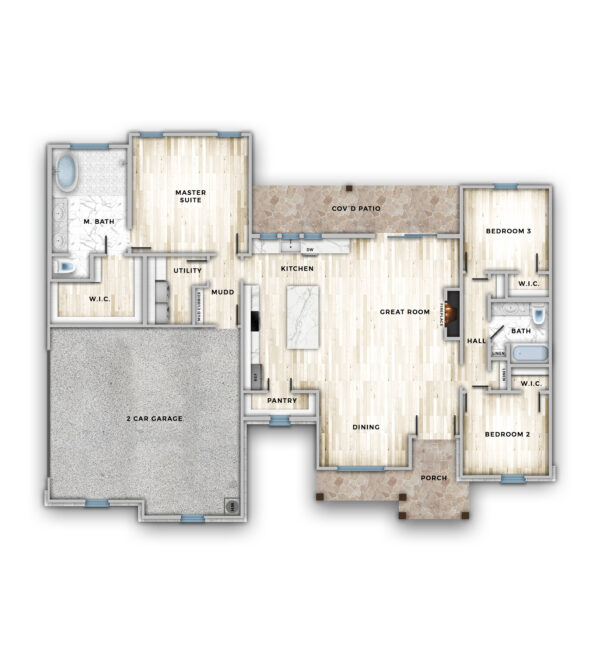

A2- First Floor Plan

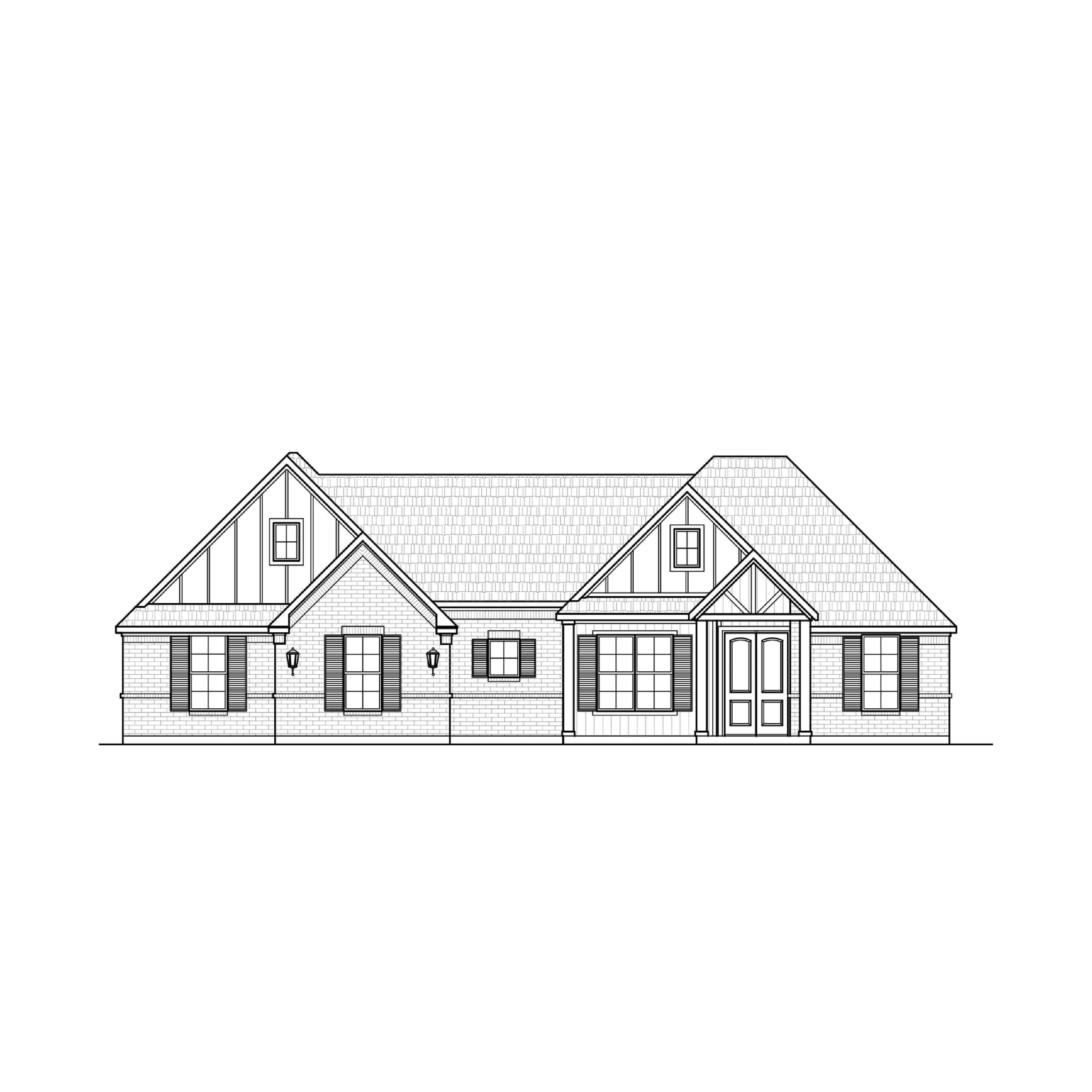

A3- Front & Rear Elevations
A4- Right & Left Elevations
A5- Roof Plan
E1- First Floor Electrical Plan
P1- Plumbing Plan
S3- Wall and Roof Rafter Details
S4-Ceiling and Roof Details
S5- Additional Details
S6- Additional Details
Blueprints That You Get
Lorem ipsum dolor sit amet consectetur adipisicing elit. A excepturi doloribus quasi vitae odio porro omnis repellendus libero iste sed neque quia, maiores atque ut laudantium inventore, id rerum error!
