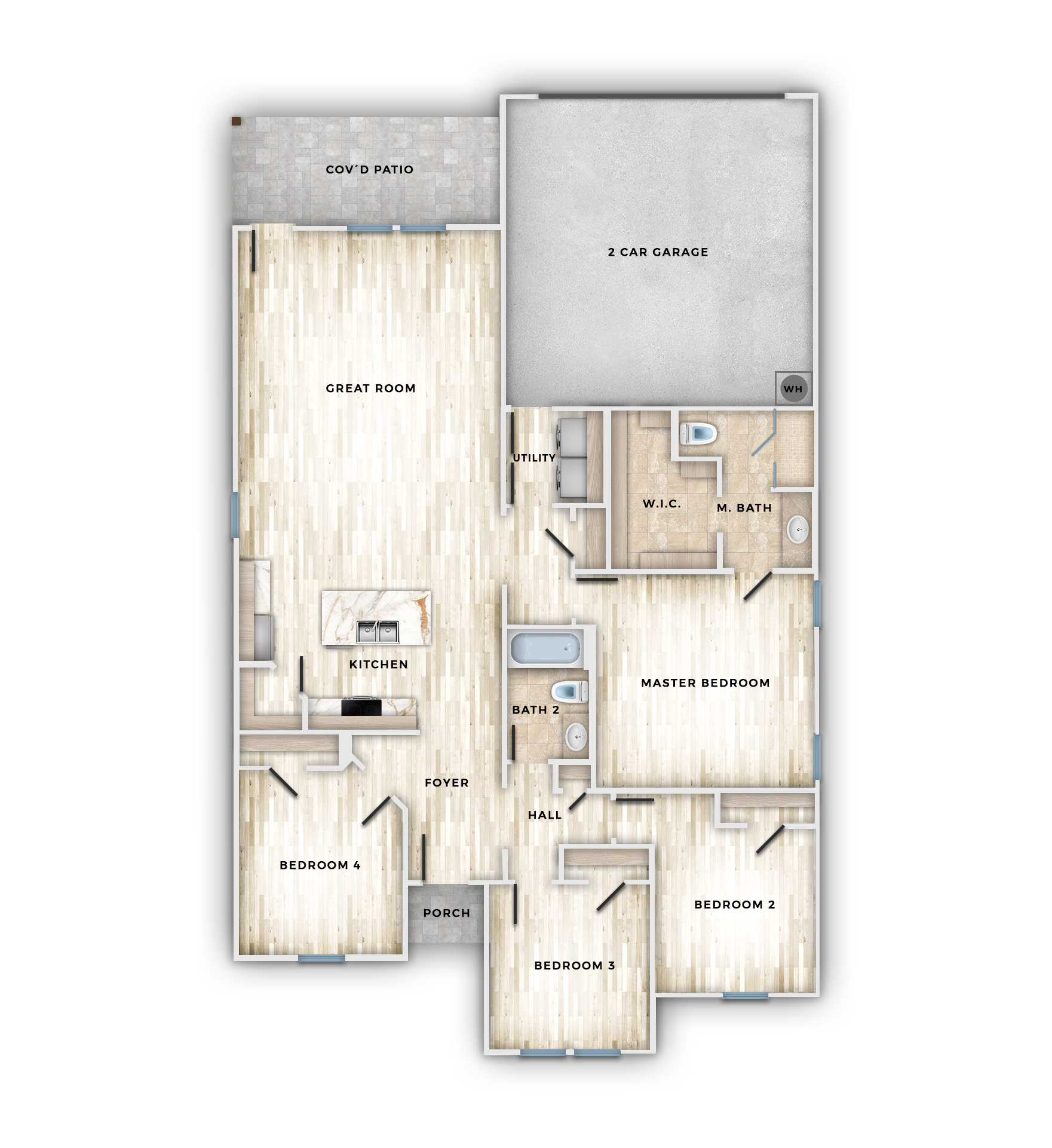

1647 Brazos

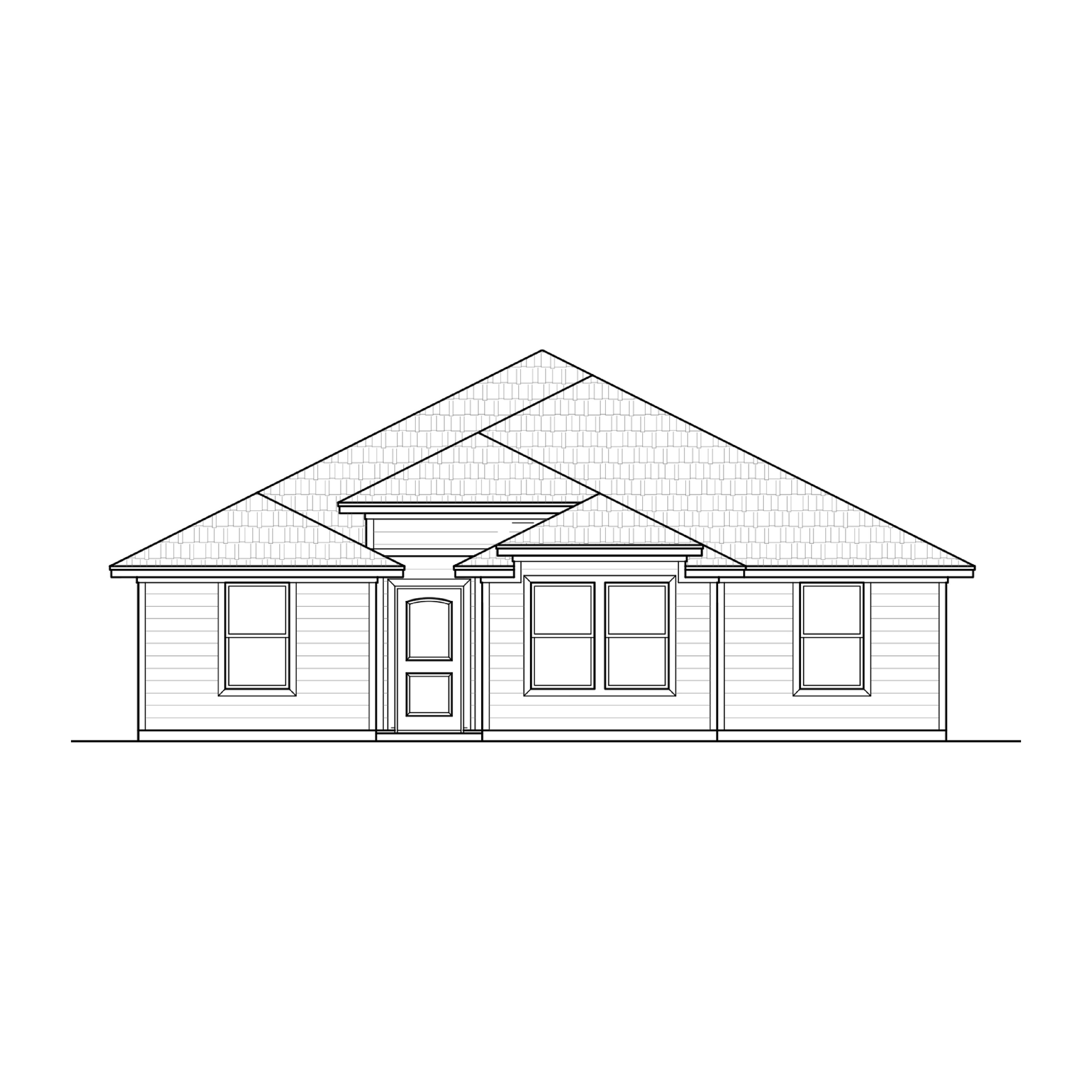

1647 Brazos - Image 2

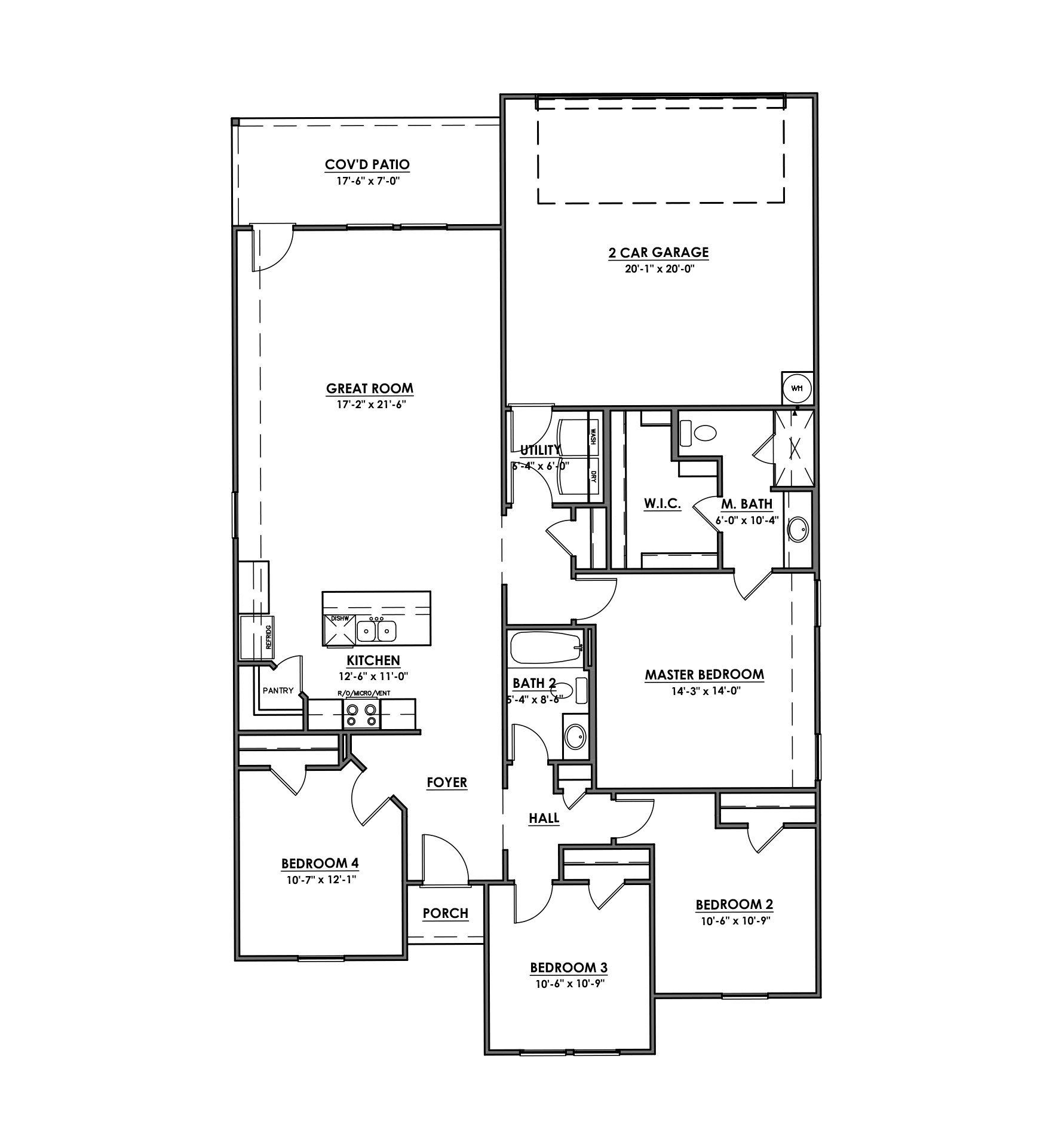

1647 Brazos - Image 3
1647 Brazos - Image 4

1647 Brazos

  • plan-area 1647 sq/ft
  • plan-area 4 Bed
  • plan-area 2 Bath
  • plan-area 1

House Construction Drawings

$904.87



Key Features

  • Bedrooms: 4
  • Baths: 2
  • Garage Swing: Rear Entry
  • Stories: 1

Area

  • House Area: 1647
  • Total Area: 2207

Dimension

  • Width: 38'-1"
  • Depth: 62'-5"
  • Height: 17'-9 1/2"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Siding

Roof

  • Primary pitch: 6:12

House Interior

  • Ceiling Height: 8'-0"
  • Main living area ceiling height: 9'-0"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

C1- Revision Index, General Notes

A2- First Floor Plan

A3- Front & Rear Elevation + Column Detail

A4- Right & Left Elevations

A5-Roof Plan

E1- First Floor Electrical Plan

P1- First Floor Plumbing Plan
