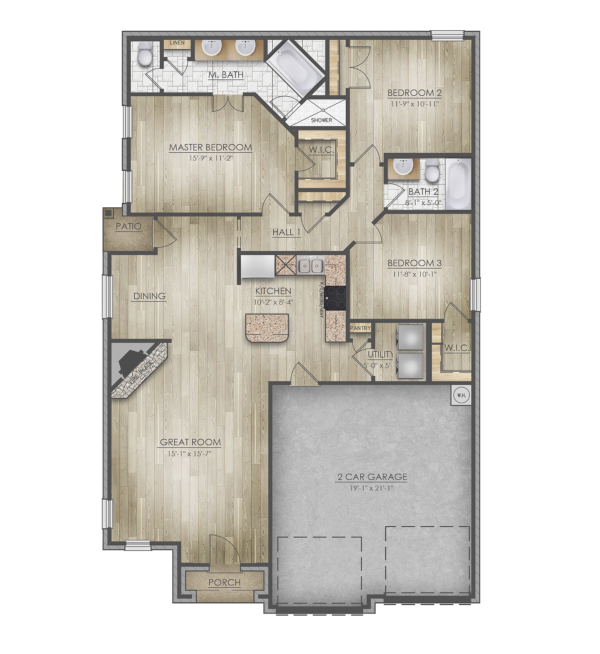

1433 Sienna

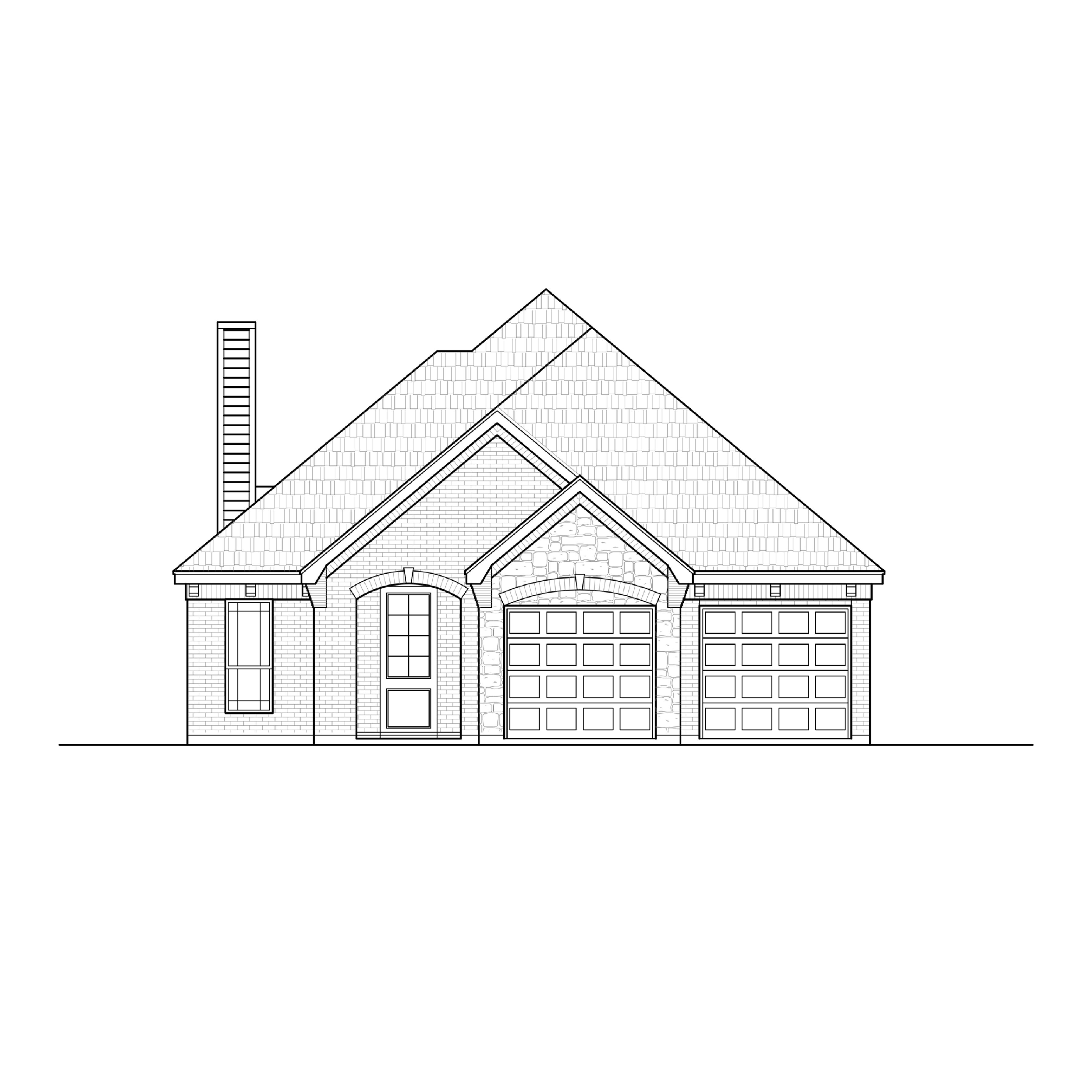

1433 Sienna - Image 2

1433 Sienna

  • plan-area 1433 sq/ft
  • plan-area 3 Bed
  • plan-area 2 Bath
  • plan-area 1

House Construction Drawings

$787.20



Key Features

  • Bedrooms: 3
  • Baths: 2
  • Garage Swing: Front Entry
  • Stories: 1

Area

  • House Area: 1433
  • Total Area: 1920

Dimension

  • Width: 36'-0"
  • Depth: 55'-8"
  • Height: 24'-1/8"

Exterior Wall

  • Framing: 2x4
  • Wall Finish: Brick Venner

Roof

  • Primary pitch: 8:12
  • Secondary Pitch: 10:12

House Interior

  • Ceiling Height: 10'-0"

Description

Your Purchase includes an Architectural set in PDF format with the following contents:

A1- Revision Index, General Notes

A2- First Floor Plan

A3- Front & Rear Elevations

A4- Right & Left Elevations

A5- Roof Plan

E1- First Floor Electrical Plan

P1-First Floor Plumbing Plan
